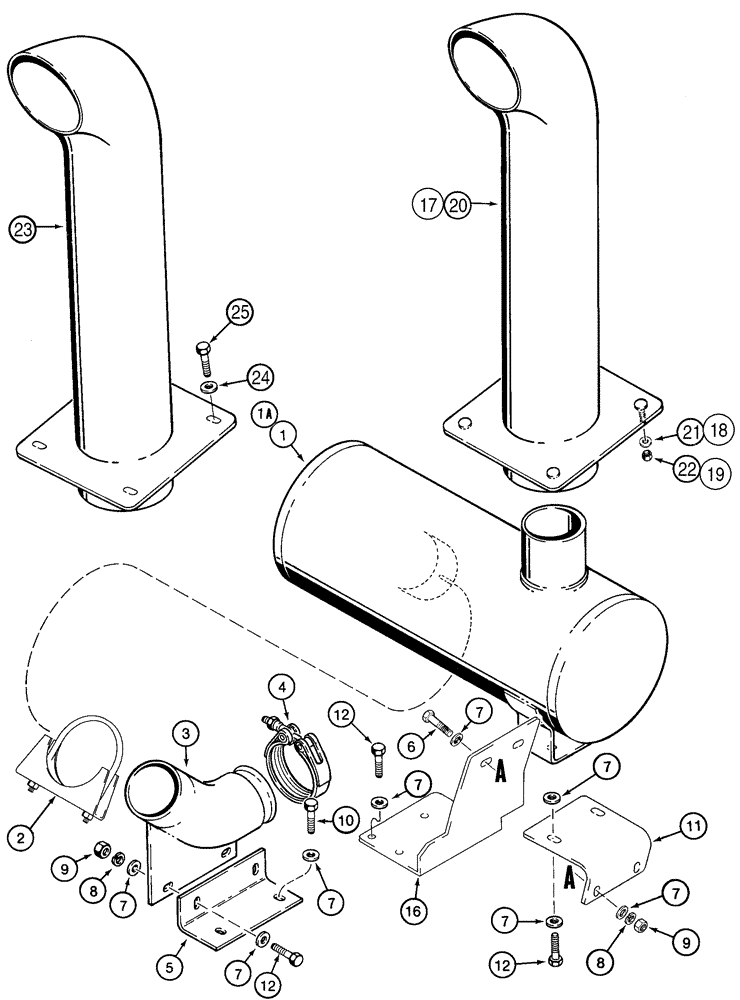

Запчасти Case 821C (02-15) - MUFFLER EXHAUST SYSTEM (02) - ENGINE

All North American Models

1шт.

European Models -JEE0126215

1шт.

1

316784A1

MUFFLER

Standard, North America Only

1шт.

1

316785A1

MUFFLER

Spark Arrester, North America Only

1шт.

1a

316786A1

MUFFLER

Standard, Europe Only

1шт.

1a

316787A1

MUFFLER

Spark Arrester, Europe Only

1шт.

2

A162896

CLAMP

1шт.

3

197299A1

ELBOW

1шт.

4

A170807

CLAMP,102mm ID

1шт.

5

197302A1

SUPPORT

1шт.

6

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

7

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

16шт.

8

892-11010

LOCK WASHER,M10

4шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

10

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

11

197300A1

HOLDER

1шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

16

197301A1

HOLDER

1шт.

All North American Models

1шт.

European Models -JEE0126215

1шт.

17

L127961

WHISTLE

North America Only, -JEE0126215

1шт.

18

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

North America Only, -JEE0126215

4шт.

19

231-1446

NUT,3/8" - 16, Gr 5

North America Only, -JEE0126215

4шт.

20

436220A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST , North America Only, JEE0126216-

1шт.

21

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm, North America Only, JEE0126216-

4шт.

22

829-1412

NUT,M12, Cl 10.9

North America Only, JEE0126216-

4шт.

23

144419A1

PIPE

Europe Only

1шт.

24

496-41041

WASHER,13/32" x 1 1/8" x .134"

Europe Only

4шт.

25

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

Europe Only

4шт.
