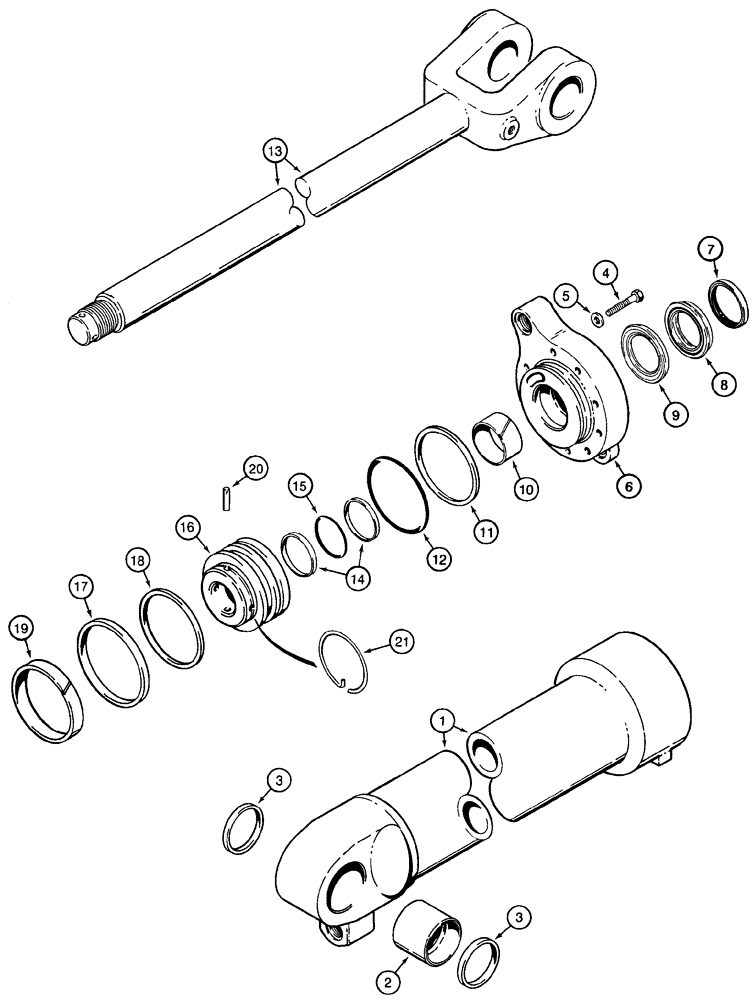

Запчасти Case 821C (08-33) - CYLINDER ASSY LOADER LIFT (08) - HYDRAULICS

1986601C1

HYDRAULIC CYLINDER,Double Acting, 88.9mm Rod, 806.5mm Stroke

152 ID x 807 mm strk, Lift, Consists Of 1-21

2шт.

1

1343590C1

JACK BODY

Includes 2

1шт.

2

L127014

BUSHING,82.73mm ID x 95.38mm OD x 82mm L

1шт.

3

L104363

WIPER SEAL

2шт.

4

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

9шт.

5

G110688

WASHER

5/8

9шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder, Consists Of 6-12, Order Components

1шт.

6

1986602C1

GLAND

1шт.

7

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

1шт.

1986823C2

SEAL KIT

Seal, Consists Of 7 - 12, 14, 15, 17 - 19

1шт.

Note: The cylinder assembly part number is stamped on some cylinder glands or tubes

1шт.

Nota : Le numéro de référence du vérin est moulé sur l'un des tubes ou des fouloirs de vérin.

1шт.

Nota: El número de pieza del conjunto del cilindro está impreso en algunos tubos o prensaestopas del cilindro.

1шт.

1542882C1

STRIPPER PACKAGE

Not Serviced Separately, Seal, Consists Of 8, 9, Order 1986823C2, See Below

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Rod, Order 1986823C2, See Below

1шт.

9

NSS

NOT SOLD SEPARAT

Seal, Buffer Seal, Order 1986823C2, See Below

1шт.

10

G110677

HYD CYL SLEEVE

1шт.

11

G109034

BACK-UP RING,135.94mm ID x 145.08mm OD x 1.93mm Thk

1шт.

12

238-5356

O-RING,0.21" Thk x 5.375" ID, -356, Cl 5, 75 Duro

1шт.

13

1986630C1

PISTON ROD

1шт.

14

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

2шт.

15

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

16

1986633C1

JACK PISTON

1шт.

17

G110330

SEALING RING

SEALRING

1шт.

18

G110331

SEALING RING,Square, 6.86mm Thk x 132.46mm ID

SEALRING

1шт.

19

G110332

WEAR RING,146.04mm ID x 152.4mm OD x 38.1mm Thk

1шт.

20

G106602

LOCK PIN

1шт.

21

1980390C1

RING, SNAP

RING SNAP

1шт.

1986823C2

SEAL KIT

Seal, Consists Of 7-12, 14, 15, 17-19

1шт.
