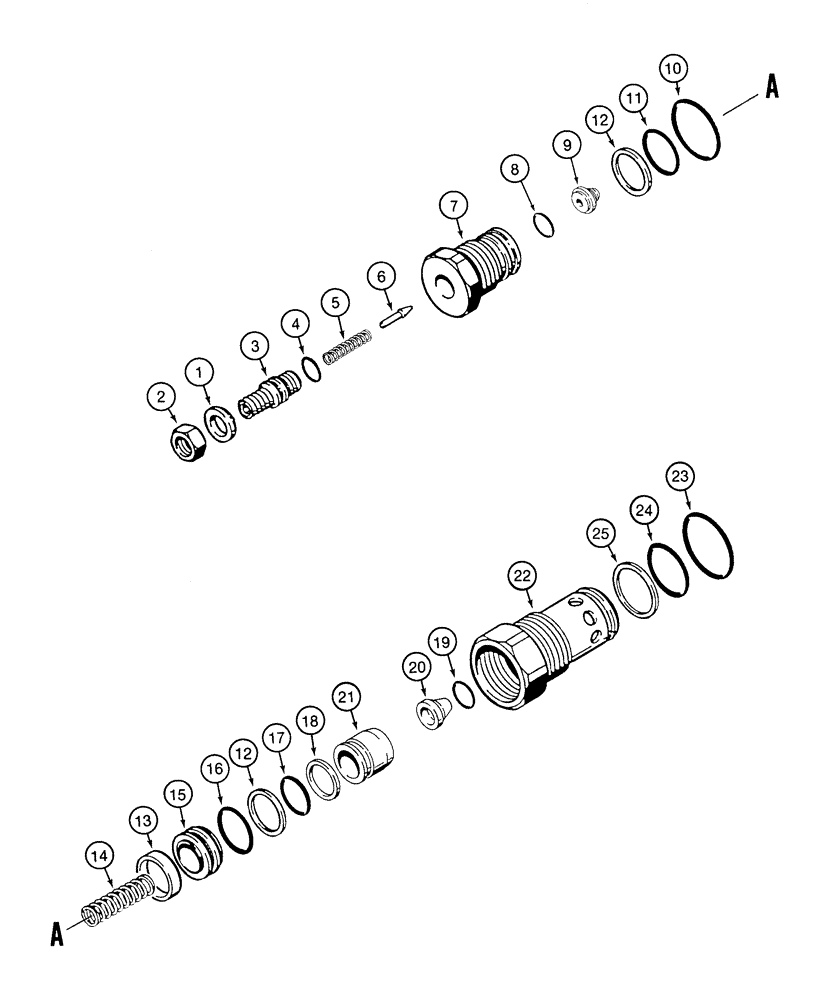

Запчасти Case 821C (08-30) - VALVE ASSY RELIEF, MAIN (08) - HYDRAULICS

S300885

VALVE

Main Relief, Loader Control, Consists Of 1-25, Component Parts No Longer Serviced Separately

1шт.

1

NSS

NOT SOLD SEPARAT

Washer

1шт.

2

NSS

NOT SOLD SEPARAT

3/8 NF, Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Screw

1шт.

4

NSS

NOT SOLD SEPARAT

3/8 ID x 1/16, O-Ring

1шт.

5

NSS

NOT SOLD SEPARAT

Spring

1шт.

6

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

NSS

NOT SOLD SEPARAT

Body Assy, Consists Of 7-9

1шт.

7

NSS

NOT SOLD SEPARAT

Body

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Seat

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

13/16 ID x 1/16, O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

13

NSS

NOT SOLD SEPARAT

Spacer

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

15

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

16

NSS

NOT SOLD SEPARAT

13/16 ID x 1/16, O-Ring

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

18

NSS

NOT SOLD SEPARAT

Ring

1шт.

S301665

SEAL KIT

Seal, Consists Of 4, 10-12, 16-18, 23-25

1шт.

NSS

NOT SOLD SEPARAT

Poppet, Valve, Relief Valve, Consists Of 19- 21

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

20

NSS

NOT SOLD SEPARAT

Filter

1шт.

21

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

22

NSS

NOT SOLD SEPARAT

Body

1шт.

23

NSS

NOT SOLD SEPARAT

1-11/64 ID x 7/64, O-Ring

1шт.

24

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

25

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

S301665

SEAL KIT

Seal, Consists Of 4, 10-12, 16-18, 23-25

1шт.
