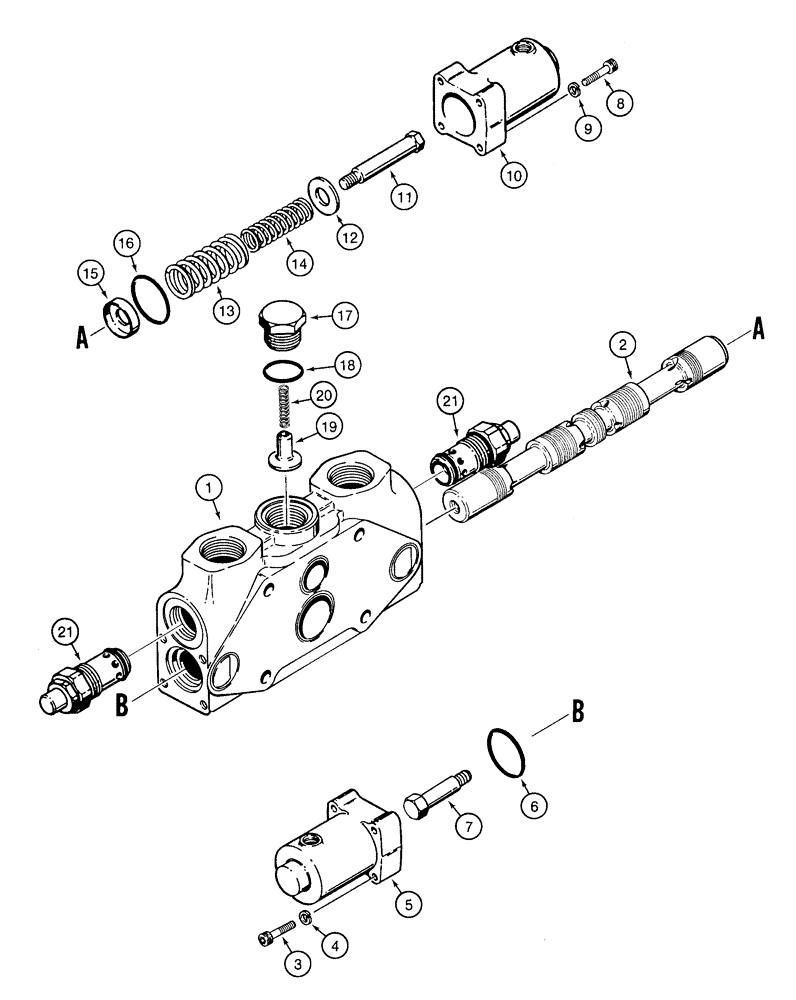

Запчасти Case 821C (08-28) - VALVE SECTION LOADER AUXILIARY (08) - HYDRAULICS

S300871

VALVE

Auxiliary, Consists Of 1-21

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

461-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

4шт.

4

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

4шт.

5

N9447

COVER

1шт.

6

238-5132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1-3/4 ID x 3/32

1шт.

7

N9480

BOLT

1шт.

8

461-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

4шт.

9

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

4шт.

10

N9447

COVER

1шт.

11

N9480

BOLT

1шт.

12

N9451

SPACER

1шт.

13

N9481

SPRING

Spool Positioner, Large

1шт.

14

N9482

SPRING

Spool Positioner, Small

1шт.

15

N9483

SPACER

1шт.

16

238-5132

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1-3/4 ID x 3/32

1шт.

17

N9455

PLUG

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

N9456

PIN

1шт.

20

D28840

SPRING

1шт.

21

S300877

VALVE

Circuit Relief and Anticavitation, See Page(s) 8-89

2шт.
