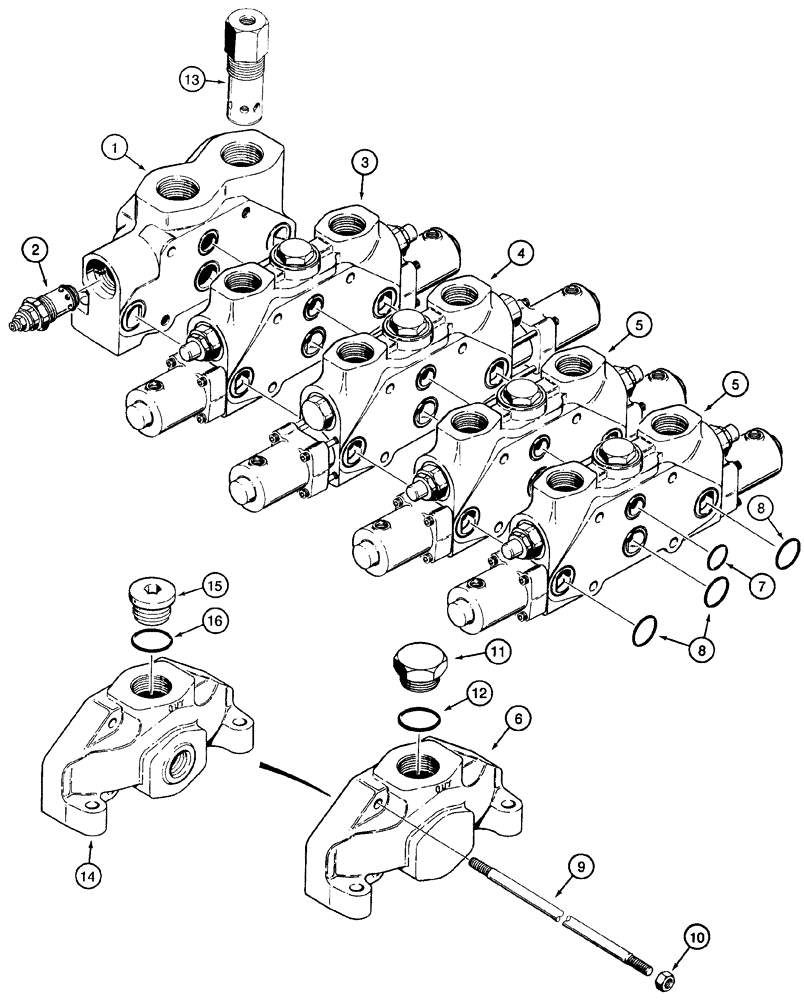

Запчасти Case 821C (08-25) - VALVE ASSY LOADER CONTROL, FOUR SPOOL (08) - HYDRAULICS

North America Only

1шт.

L126102

VALVE

Loader Control, Four Spool, Consists Of 1-13

1шт.

1

S300884

VALVE BLOCK

Inlet And Outlet

1шт.

2

S300885

VALVE

Main Relief, See Page(s) 8-85

1шт.

3

S300880

VALVE BLOCK

Bucket, See Page(s) 8-75

1шт.

4

S300881

VALVE BLOCK

Lift, See Page(s) 8-71

1шт.

5

S300871

VALVE

Auxiliary, See Page(s) 8-79

1шт.

6

N9484

COVER

End Cover

1шт.

7

238-6124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

1шт.

8

238-6128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

1шт.

North America Only

1шт.

9

S300874

STUD

Tie

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

4шт.

11

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

1-7/8 Or, Includes 12

1шт.

12

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

13

S300886

VALVE

Low Pressure, See Page(s) 8-83

1шт.

Power Beyond Kit

1шт.

L36349

KIT

Power Beyond, Consists Of 14-16

1шт.

14

S301816

COVER

1шт.

15

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Includes 16

1шт.

16

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.
