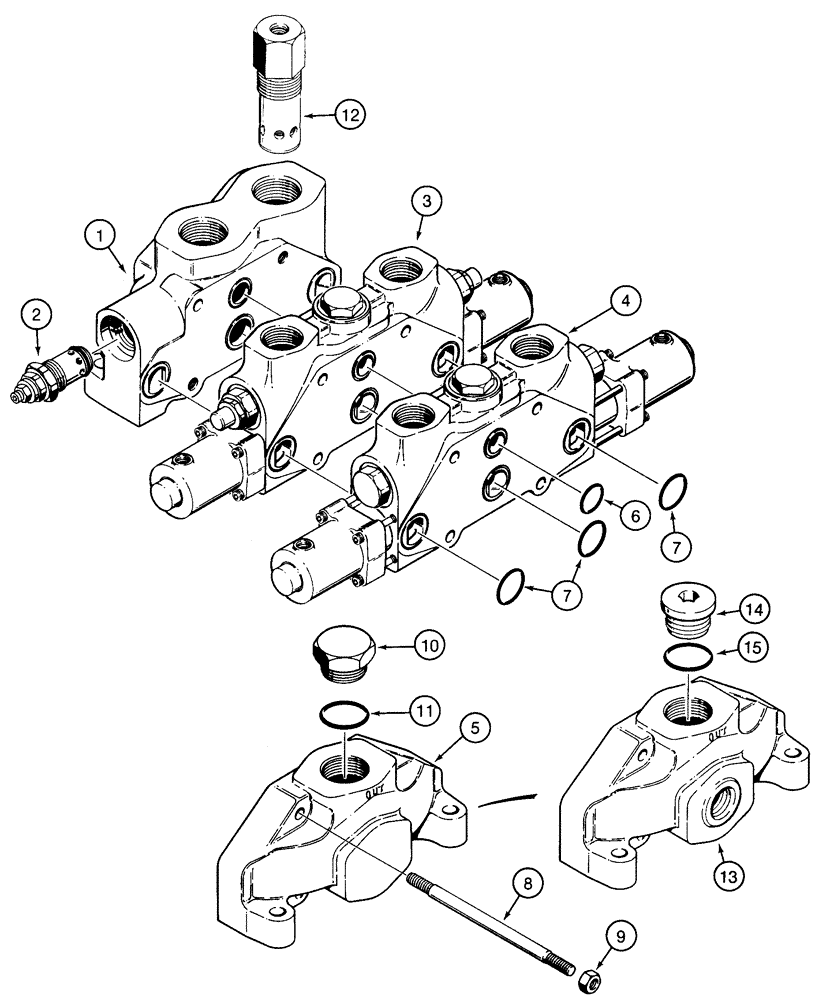

Запчасти Case 821C (08-23) - VALVE ASSY LOADER CONTROL, TWO SPOOL (08) - HYDRAULICS

North America Only

1шт.

L126100

VALVE

Loader Control, Two Spool, Consists Of 1-12

1шт.

1

S300884

VALVE BLOCK

Inlet And Outlet

1шт.

2

S300885

VALVE

Main Relief, See Page(s) 8-85

1шт.

3

S300880

VALVE BLOCK

Bucket, See Page(s) 8-75

1шт.

4

S300881

VALVE BLOCK

Lift, See Page(s) 8-71

1шт.

5

N9484

COVER

End Cover

1шт.

6

238-6124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

3шт.

7

238-6128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 6, 90 Duro

9шт.

North America Only

1шт.

8

N9486

BOLT

Tie

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

4шт.

10

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

1-7/8 Or, Includes 11

1шт.

11

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

12

S300886

VALVE

Low Pressure, See Page(s) 8-83

1шт.

Power Beyond Kit

1шт.

L36349

KIT

Consists Of 13-15

1шт.

13

S301816

COVER

1шт.

14

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

Includes 15

1шт.

15

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.
