(08-20) - VALVE, UNLOADING

Запчасти Case 821C (08-20) - VALVE, UNLOADING (08) - HYDRAULICS

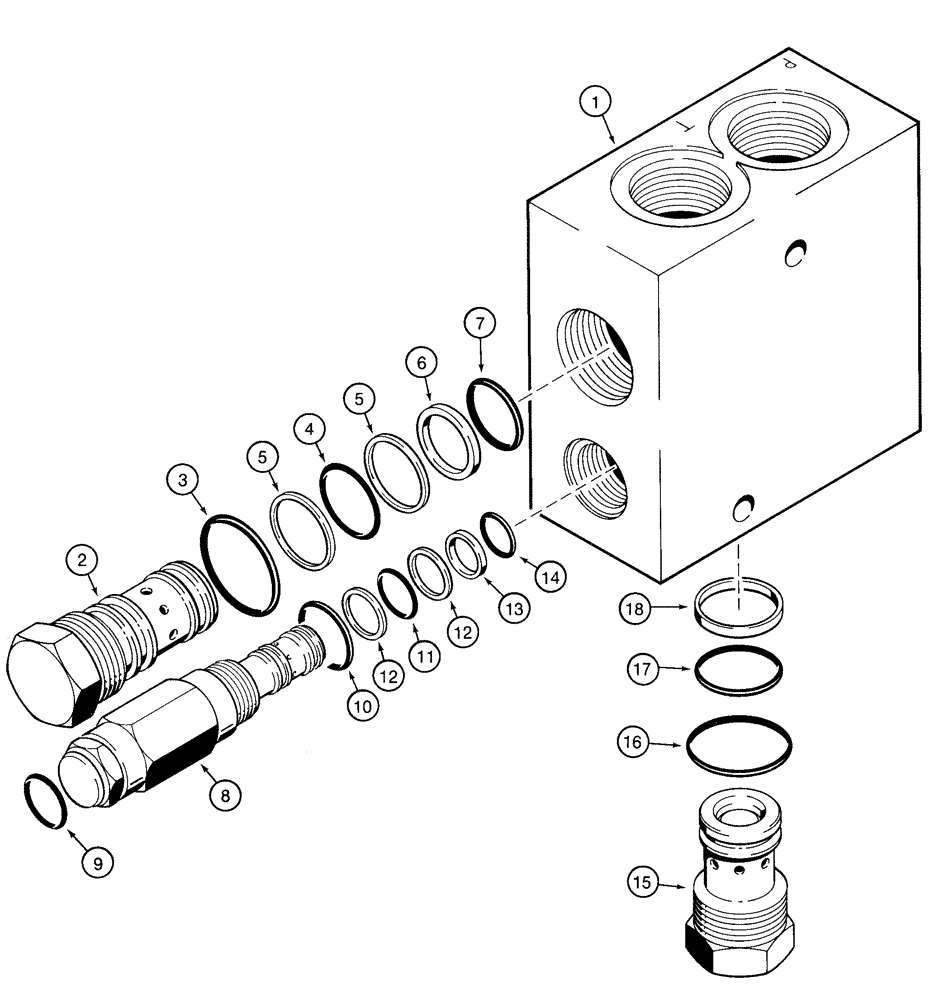

Схема запчастей Case 821C - (08-20) - VALVE, UNLOADING (08) - HYDRAULICS
1
5
9
6
8
17
14
15
13
5
10
11
12
2
16
18
4
7
12
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

191917A2

VALVE

Unloading, Consists Of 1-18

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

110901A1

VALVE

Consists Of 2-7, Component Parts Not Serviced Separately

1шт.

2

NSS

NOT SOLD SEPARAT

Cartridge

1шт.

110902A1

SEAL KIT

Consists Of 3-7

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring, Large

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring, Medium

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

6

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring, Small

1шт.

110903A1

VALVE

Consists Of 8-14, Component Parts Not Serviced Separately

1шт.

8

NSS

NOT SOLD SEPARAT

Cartridge

1шт.

110904A1

SEAL KIT

Consists Of 9-14

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, Outer

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, Large

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, Medium

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

13

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, Small

1шт.

122410A1

VALVE, CHECK

Component Parts Not Serviced Separately, Consists Of 15-18

1шт.

15

NSS

NOT SOLD SEPARAT

Cartridge

1шт.

124305A1

SEAL KIT

Consists Of 16-18

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, Large

1шт.

17

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

18

NSS

NOT SOLD SEPARAT

O-Ring, Small

1шт.
