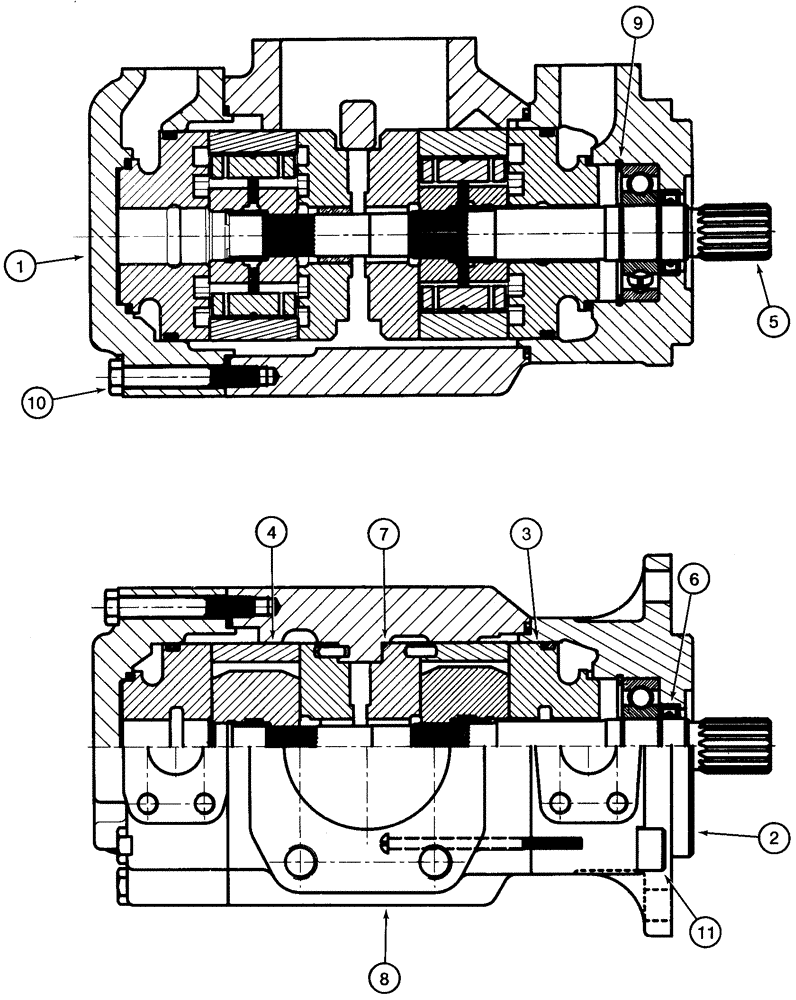

Запчасти Case 821C (08-18) - PUMP ASSY (08) - HYDRAULICS

226568A1

PUMP, HYDRAULIC,89.64 CC

Consists Of 1-12

1шт.

226568A1R

REMAN-HYD PUMP

821C S/N JEE0155000 & Prior,

1шт.

226568A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

256613A1

CAP

Port End

1шт.

2

256617A1

CAP

Shaft End

1шт.

3

319940A1

VALVE

Internal, Shaft End, Component Parts Not Serviced Separately

1шт.

4

319938A1

VALVE

Internal, Port End, Component Parts Not Serviced Separately

1шт.

5

256628A1

BEARING ASSY

Includes Bearing, Component Parts Not Serviced Separately

1шт.

6

256629A1

SEAL KIT

Includes Shaft Seal, Component Parts Not Serviced Separately

1шт.

7

256626A1

LARGE PLATE

PLATE, LARGE , Internal, Rear Port Plate and Bushing

1шт.

8

256619A1

HOUSING

Center

1шт.

9

3215468R1

RING

Shaft and Bearing

1шт.

10

3215476R1

BOLT

Rear End Cover

7шт.

11

3215477R1

BOLT

Shaft End Cover

4шт.

12

256625A1

LARGE PLATE

PLATE, LARGE , Rear Port, Not Illustrated

1шт.
