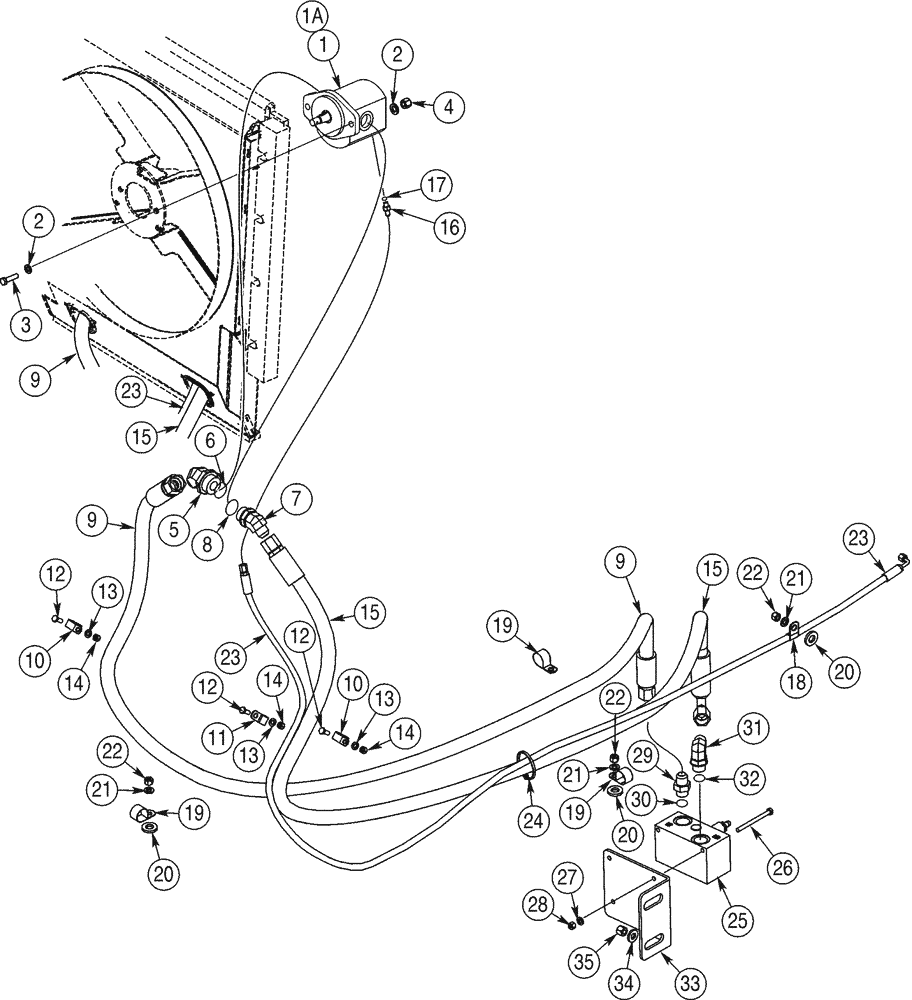

Запчасти Case 821C (08-17) - HYDRAULICS FAN DRIVE (08) - HYDRAULICS

All Models JEE0126216-

1шт.

1

426019A1

HYDRAULIC MOTOR

Fan Drive, Reversible, North American Only, Component Parts Not Available at Time of Printing

1шт.

426019A1R

REMAN-HYD MOTOR

821C S/N JEE0155000 & BEFORE

1шт.

426019A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

1a

397444A1

MOTOR, HYDRAULIC,GEAR, 33 CC

Fan Drive, Reversible, Europe Only, Component Parts Not Available at Time of Printing

1шт.

397444A1R

REMAN-HYD MOTOR

821C - CASE WHEEL LOADER (S/N JEE0155000 & BEFORE)

1шт.

397444A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

3

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

5

218-5525

ELBOW,45 Degree, 1 5/16"-12 x 1 5/8"-12, 37 Degree

1-5/16 fl x 1-5/8 Or, Includes 6

1шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

7

218-5144

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

1-1/16 fl x 1-5/16 Or, Includes 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

434867A1

HOSE,19.05 mm ID x 2425.00 mm, SAE 100R12

Fan Return

1шт.

10

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

31,7 mm

2шт.

11

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

13

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

3шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

15

434866A1

HOSE ASSY.

2200 mm (86-5/8 in)

1шт.

All Models JEE0126216-

1шт.

16

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. 17

1шт.

17

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

18

515-25143

CLAMP,9/16", Insul, 1/2" Bolt

1шт.

19

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

3шт.

20

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

3шт.

21

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

23

434865A1

HOSE ASSY.

2475 mm (97-1/2 in)

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

25

433292A2

VALVE, PRESSURE RELI

EF , See Page(s) 8-189J

1шт.

26

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

27

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

29

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 30

1шт.

30

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

31

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 32

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

33

435139A2

BRACKET

1шт.

34

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

35

832-10412

NUT,M12 x 1.75, Cl 8

2шт.
