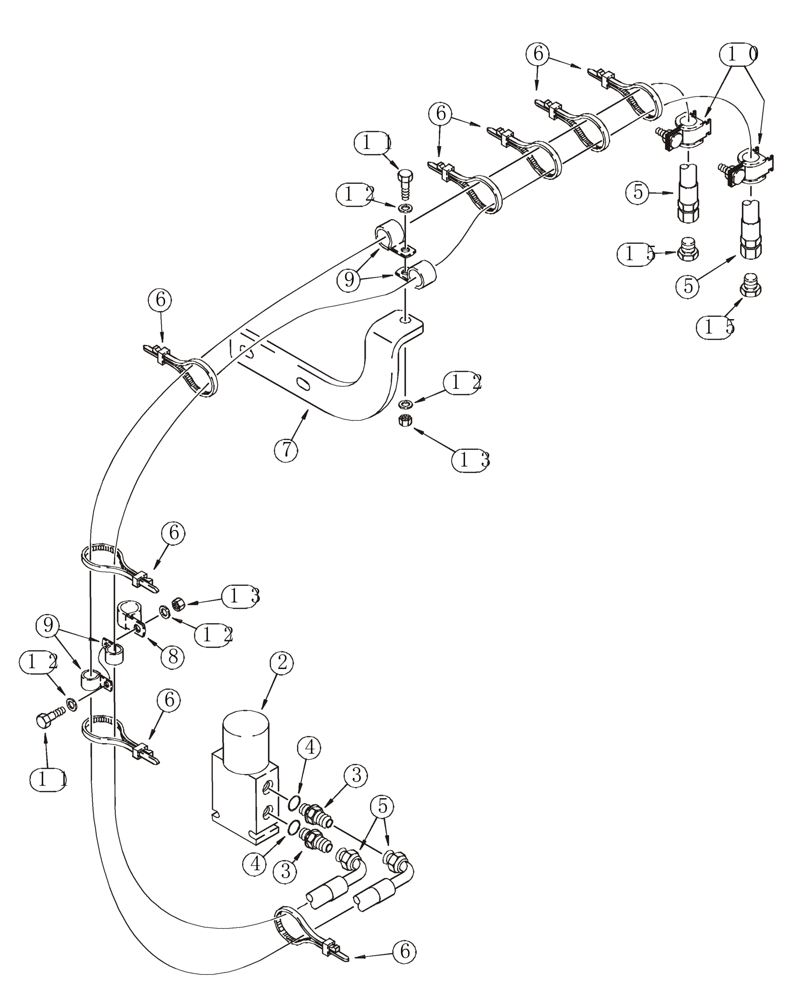

Запчасти Case 821C (08-16) - HYDRAULICS COUPLER (08) - HYDRAULICS

North America Only

1шт.

1

305267A1

ACS Pro-Series 2000, Complete, With Hoses From Locking Cylinders to Case Corp Plumbing on Lift Arms, See Note, Not Illustrated

1шт.

1a

305270A1

JRB Series, Complete, With Hoses From Locking Cylinders to Case Corp Plumbing on Lift Arms, See Note, Not Illustrated

1шт.

2

118857A1

VALVE

Coupler Locking, See Page(s) 8-57

1шт.

Note: Part is available from the supplier through your local dealer

1шт.

Nota : La pièce est disponible auprès du fournisseur par l'intermédiaire du concessionnaire local.

1шт.

Nota: La pieza está disponible del suministrador a través de su concesionario local.

1шт.

North America Only

1шт.

3

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 4

2шт.

5

303761A1

HOSE ASSY.

3100 mm (122 in)

2шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

7

299325A1

BRACKET

1шт.

8

515-23508

CLAMP,2", Insul, 3/8" Bolt

19 mm

1шт.

9

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

4шт.

10

303374A1

CLAMP

Includes Hardware

2шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

218-772

PLUG,7/16"-20, 37 Degree

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
