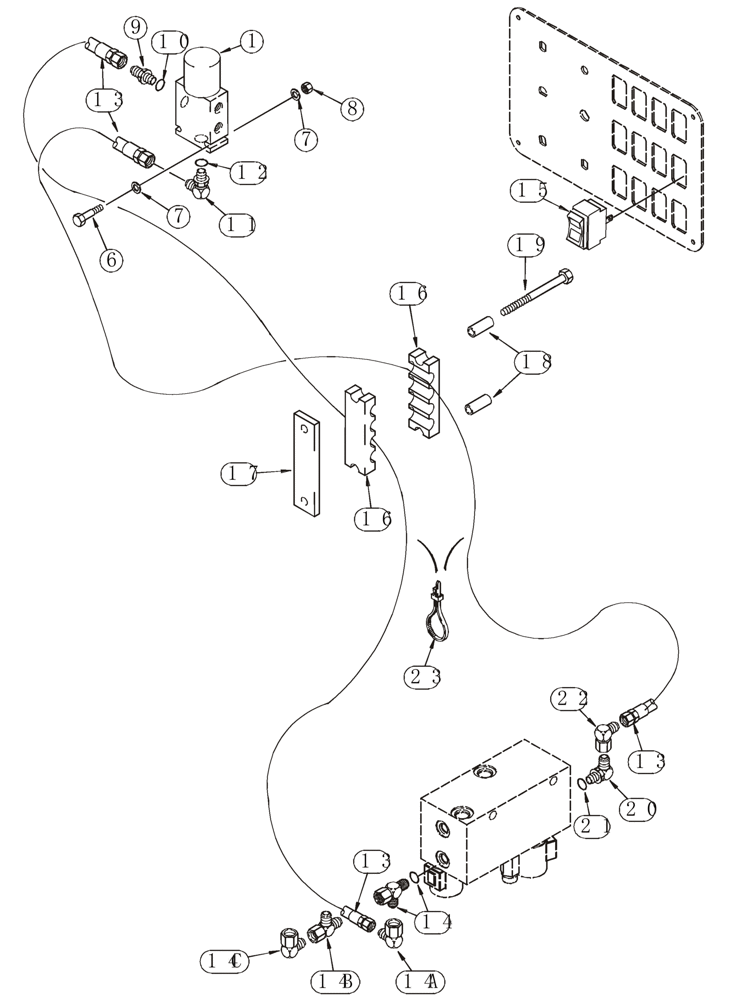

Запчасти Case 821C (08-15) - HYDRAULICS COUPLER LOCKING (08) - HYDRAULICS

Coupler Locking

1шт.

North America Only

1шт.

1

118857A1

VALVE

Coupler Locking, See Page(s) 8-57

1шт.

6

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 10

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 12

1шт.

13

304514A1

HOSE ASSY.

2470 mm (97-1/4 in)

2шт.

14

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 237-6006

1шт.

14a

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

14b

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

14c

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

Coupler Locking

1шт.

North America Only

1шт.

15

234208A1

SWITCH

Coupler, No Longer Available, Order 364444A1

1шт.

15

364444A1

SWITCH

Coupler, Replaces 234208A1

1шт.

16

L124271

FIXING BRACKET

4шт.

17

L124270

LARGE PLATE

PLATE, LARGE

2шт.

18

L126936

SPACER

4шт.

19

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

No longer used, Order 827-10130

4шт.

19

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

Replaces 827-10120

4шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 21

1шт.

22

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
