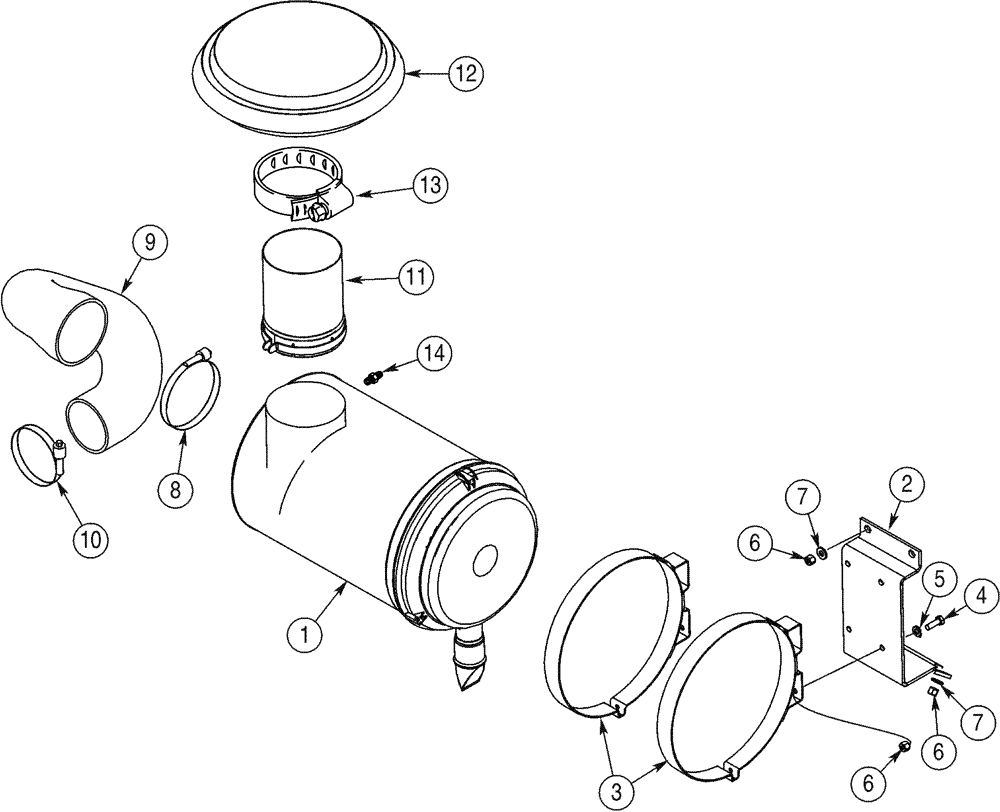

Запчасти Case 821C (02-13) - AIR CLEANER AIR INTAKE PARTS (02) - ENGINE

All Models JEE0126216-

1шт.

1

432197A1

AIR INTAKE TUBE

See Page(s) 2-19D

1шт.

2

432194A1

BRACKET

1шт.

3

336942A1

MOUNTING CLIP

2шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

5

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

4шт.

8

L124802

COLLAR CLAMP

Hose to Air Cleaner

1шт.

9

432195A1

AIR FLEXIBLE

1шт.

10

L127771

CLAMP,107.95mm - 130.18mm

1шт.

11

L129742

EXTENSION

1шт.

12

L56043

CAP

Includes 13

1шт.

13

214-31112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm

1шт.

14

D36264

FITTING

1шт.
