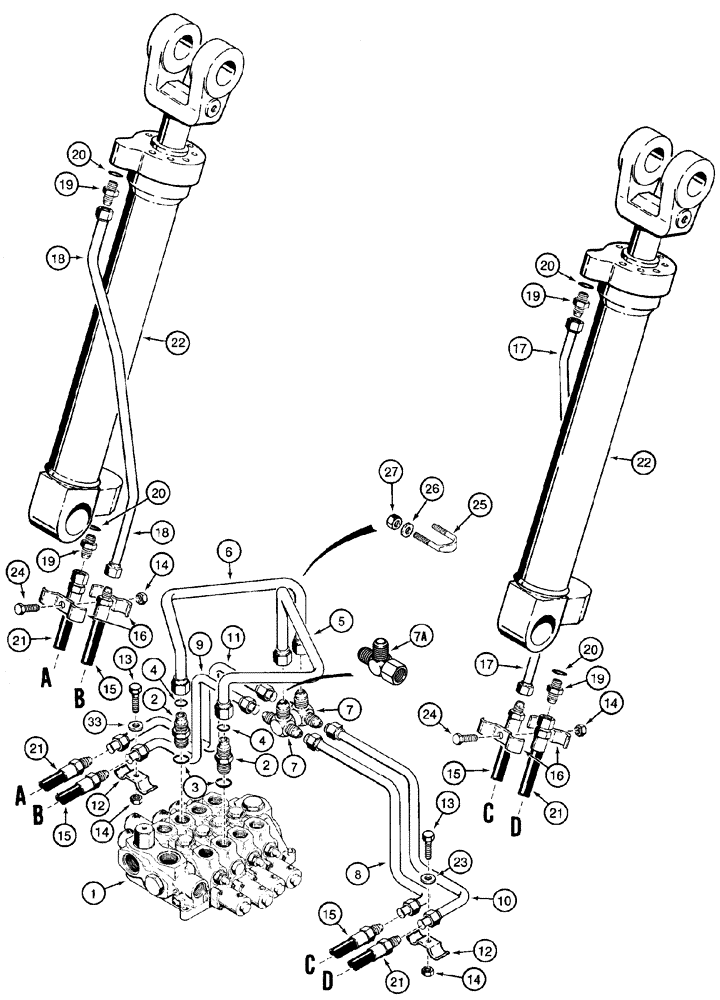

Запчасти Case 821C (08-12) - HYDRAULICS LOADER LIFT (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Control, Loader Control, See Page(s) 8-13

1шт.

2

L124289

CONNECTOR, ELEC

CONNECTOR , Includes 3, 4, Valve to Lift Tubes

2шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss End

1шт.

4

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

Flare End

1шт.

5

L125377

PIPE,31.75 mm OD x 422, 268 mm L

Supply, Right Hand

1шт.

6

L125375

PIPE,31.75 mm OD

Supply, Left Hand

1шт.

7

218-603

TEE,37 Degree, 1 5/16"-12 x 1 5/8"-12, Br

2шт.

7a

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

Models With Ride Control

2шт.

8

L125381

PIPE,25.4 mm OD

Lift Cylinder, Right Hand, Rod End

1шт.

Note: See pages 8-191 - 8-201 for the ride control hydraulic circuit

1шт.

Nota : Voir les pages 8 - 191 - 8 - 201 pour le circuit hydraulique du système anti-tangage.

1шт.

Nota: Consultar las páginas 8-191 - 8-201 para el circuito hidráulico de control de desplazamiento.

1шт.

9

L125385

PIPE,25.4 mm OD

Lift Cylinder, Left Hand, Rod End

1шт.

9a

108897A1

TUBE

Lift Cylinder, Left Hand, Rod End, Models With Ride Control, Not Illustrated

1шт.

10

L125379

PIPE,25.4 mm OD

Lift Cylinder, Right Hand, Closed End

1шт.

11

L125383

PIPE,25.4 mm OD

Lift Cylinder, Left Hand, Closed End

1шт.

11a

108895A1

HYD TUBE

Lift Cylinder, Left Hand, Closed End, Models With Ride Control, Not Illustrated

1шт.

12

R15257

CLAMP

2шт.

13

426-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

14

231-1446

NUT,3/8" - 16, Gr 5

4шт.

15

L125345

HOSE

1400 mm (55-1/8 in)

2шт.

16

D137643

SHIN

4шт.

17

L125367

PIPE,25.4 mm OD

Right Hand, Rod End

1шт.

18

L125387

PIPE,25.4 mm OD

Left Hand, Rod End

1шт.

19

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 20

4шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

21

L125389

HOSE

1425 mm (56-1/8 in), Closed End

2шт.

22

1986601C1

HYDRAULIC CYLINDER,Double Acting, 88.9mm Rod, 806.5mm Stroke

152 ID x 807 mm strk, Lift Cylinder

2шт.

23

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

24

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

25

L104253

U-BOLT

2шт.

26

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

27

231-1445

NUT,5/16"-18, GB

4шт.
