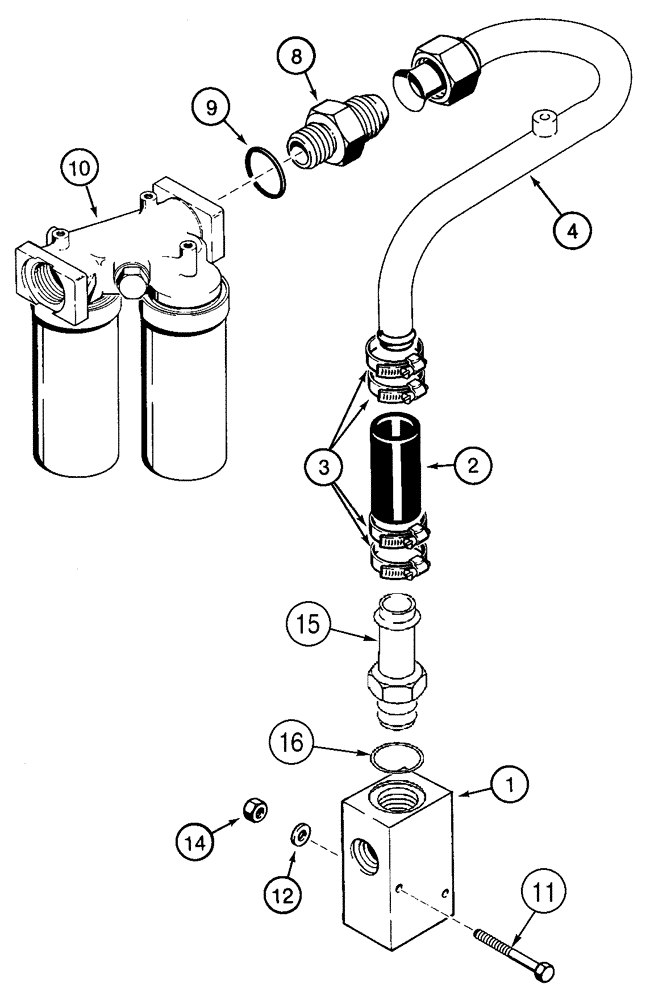

Запчасти Case 821C (08-10) - HYDRAULICS VALVE, BYPASS TO FILTER (08) - HYDRAULICS

Manifold To Filter

1шт.

All Models JEE0126216-

1шт.

1

434551A1

MANIFOLD

Cooler

1шт.

2

L125975

HOSE

110 mm (4-3/8 in)

1шт.

3

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

4шт.

4

304352A1

TUBE

Return

1шт.

8

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

1-7/8 fl x Or, Includes 9

1шт.

9

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

10

L126373

FILTER ASSY

Hydraulic Oil, See Page(s) 8-19

1шт.

11

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

12

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

217-174

FITTING,1-1/2" Hose Barb x 1-7/8" - 12 Male ORB

1-1/2 stem x 1-7/8 OR, Includes 16

1шт.

16

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.
