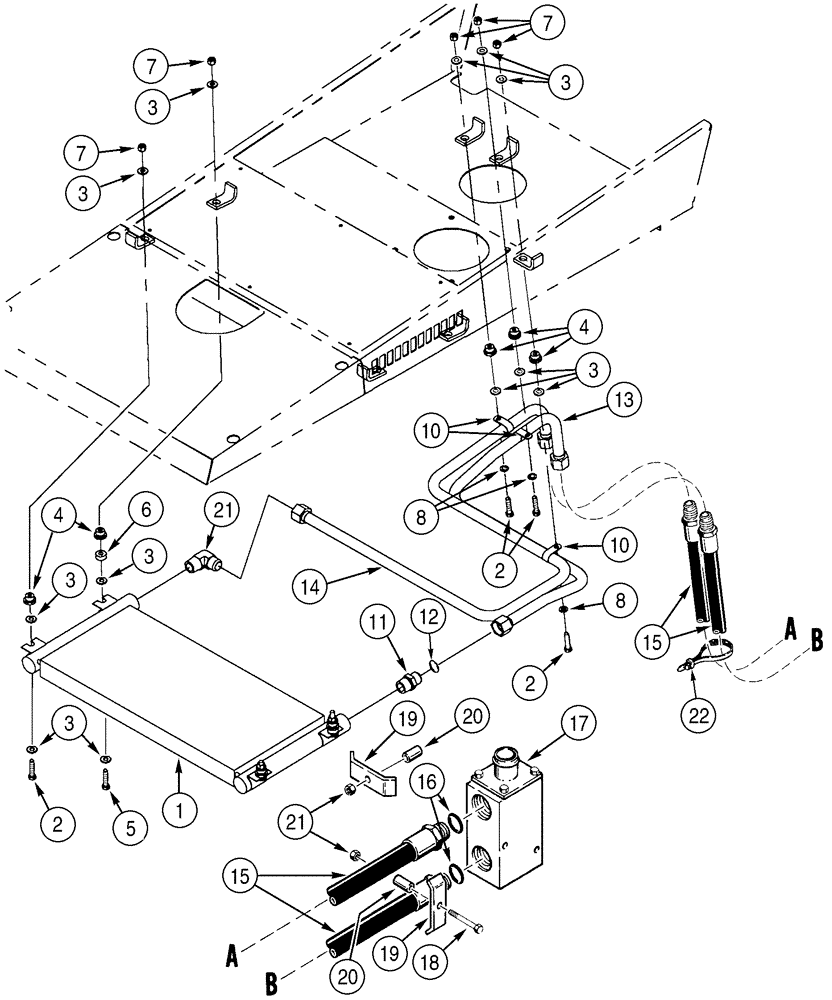

Запчасти Case 821C (08-04) - HYDRAULICS OIL COOLER AND LINES (08) - HYDRAULICS

European Models -JEE0126215

1шт.

1

L125999

OIL COOLER

Hydraulic

1шт.

2

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

5шт.

3

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

18шт.

4

196504C1

BUSHING

7шт.

5

627-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9, Full Thd

2шт.

6

143149A1

SPACER

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

10

515-23254

CLAMP,1", Insul, 3/8" Bolt

3шт.

11

L128003

ADAPTER

1 PT x 1-5/16 Or, Includes 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

320548A1

TUBE

1шт.

14

320547A1

HYD TUBE,25.4 mm OD, 691, 636 mm Length

1шт.

15

L128005

HOSE

1475 mm (58-1/8 in), Includes 16

2шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

17

L110287

VALVE,1-7/8" - 12

Hydraulic Oil Cooler, See Page(s) 8-55

1шт.

18

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

19

R34049

CLAMP

2шт.

20

A27328

SPACER

2шт.

21

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

1-5/16 fl x 1 PT

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.
