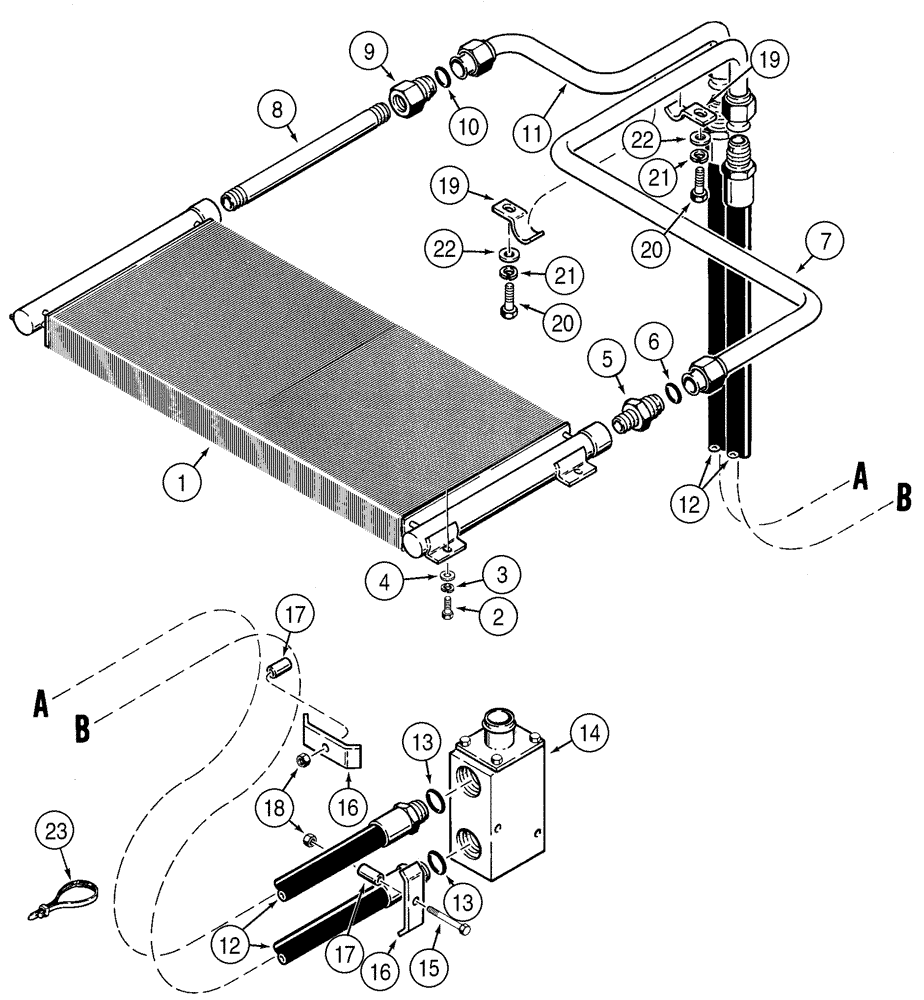

Запчасти Case 821C (08-03) - HYDRAULICS OIL COOLER AND LINES (08) - HYDRAULICS

North America Only -JEE0126215

1шт.

1

L125999

OIL COOLER

Hydraulic

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

5

L128003

ADAPTER

1 PT x 1-5/16 Or, Includes 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

L128002

PIPE,25.4 mm OD

1шт.

8

221-258

PIPE,Nipple, 1" NPT x 11/2"

1шт.

9

L128004

ADAPTER

Includes 10

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

L128000

PIPE,25.4 mm OD

1шт.

12

L128005

HOSE

1475 mm (58-1/8 in), Includes 13

2шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

14

L110287

VALVE,1-7/8" - 12

Hydraulic Oil Cooler, See Page(s) 8-55

1шт.

15

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

1шт.

16

R34049

CLAMP

2шт.

17

A27328

SPACER

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

19

S82847

CLAMP

2шт.

20

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

21

892-11012

LOCK WASHER,M12

2шт.

22

895-15012

WASHER,M12 x 28 x 2.5

13,5 x 28 x 2,5 mm

2шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.
