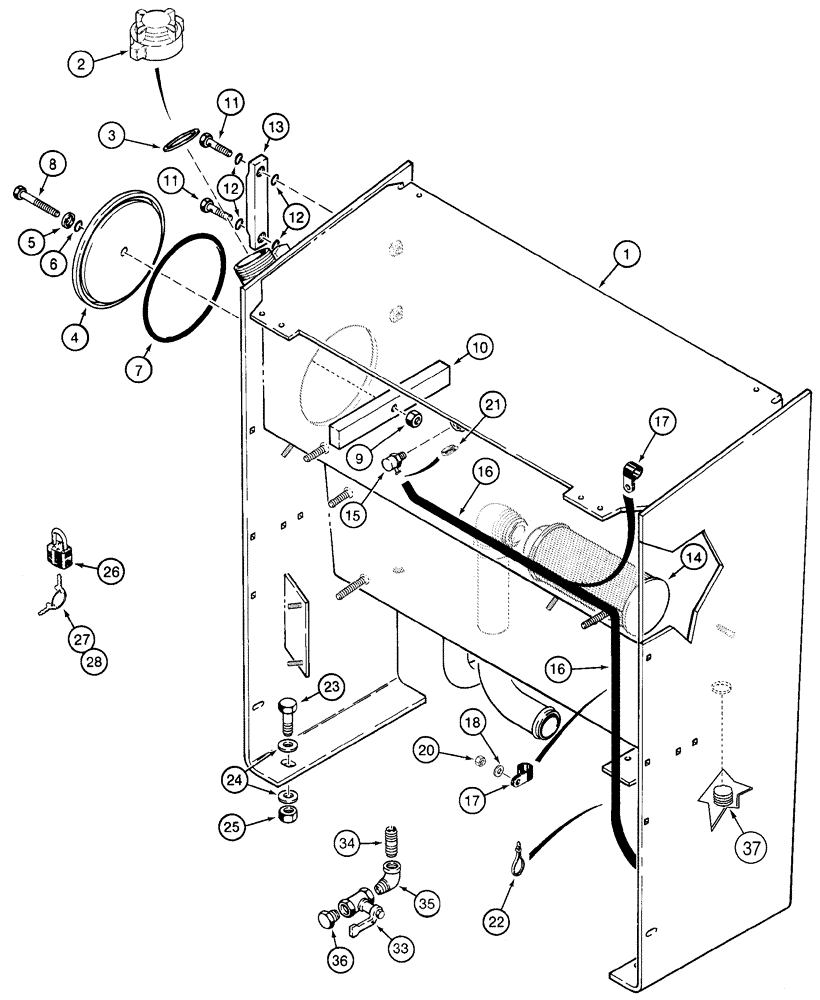

Запчасти Case 821C (08-02) - RESERVOIR (08) - HYDRAULICS

All Models JEE0126216-

1шт.

434540A2

TANK, HYDRAULIC OIL

Consists Of 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

Reservoir

1шт.

2

L128669

CAP

Internal Thread

1шт.

3

R46984

GASKET

1шт.

4

L128352

COVER

1шт.

5

L78045

WASHER

1шт.

6

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

7

238-5442

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

7-1/4 x 1/4

1шт.

8

113-2462

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 1

1шт.

9

131-510

LOCK NUT,1/2"-13

1шт.

10

L50741

BAR

1шт.

L116247

GAUGE

Sight, Oil Level, Consists Of 11 - 13

1шт.

11

N13213

BOLT

2шт.

12

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

4шт.

13

NSS

NOT SOLD SEPARAT

Gauge

1шт.

14

196955A1

FILTER SCREEN

Suction

1шт.

15

235417A2

BREATHER,3/8" - 18 PTF, 3/8" Hose Barb, 20 Micron

Pressure Relief

1шт.

All Models JEE0126216-

1шт.

16

31-2281

HOSE,9.5 mm ID x 1828.80 mm

1829 mm (72 in), Drain, Cut From 32-12X

1шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

18

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

21

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

23

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

24

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

25

829-1416

NUT,M16, Cl 10

4шт.

26

D93753

PADLOCK

Includes Keys 27, 28, If Used

1шт.

27

D93751

SET OF 2 KEYS

For Yale Padlock Only, If Used

2шт.

28

R29555

KEY

For Master Padlock Only, If Used

2шт.

33

L124327

DRAIN VALVE

Hydraulic Reservoir

1шт.

34

221-1212

FITTING

3/4 PT x 1-1/2

1шт.

35

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

1шт.

36

217-415

PLUG,Hex Hd, 3/4" - 14 NPT

1шт.

37

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.
