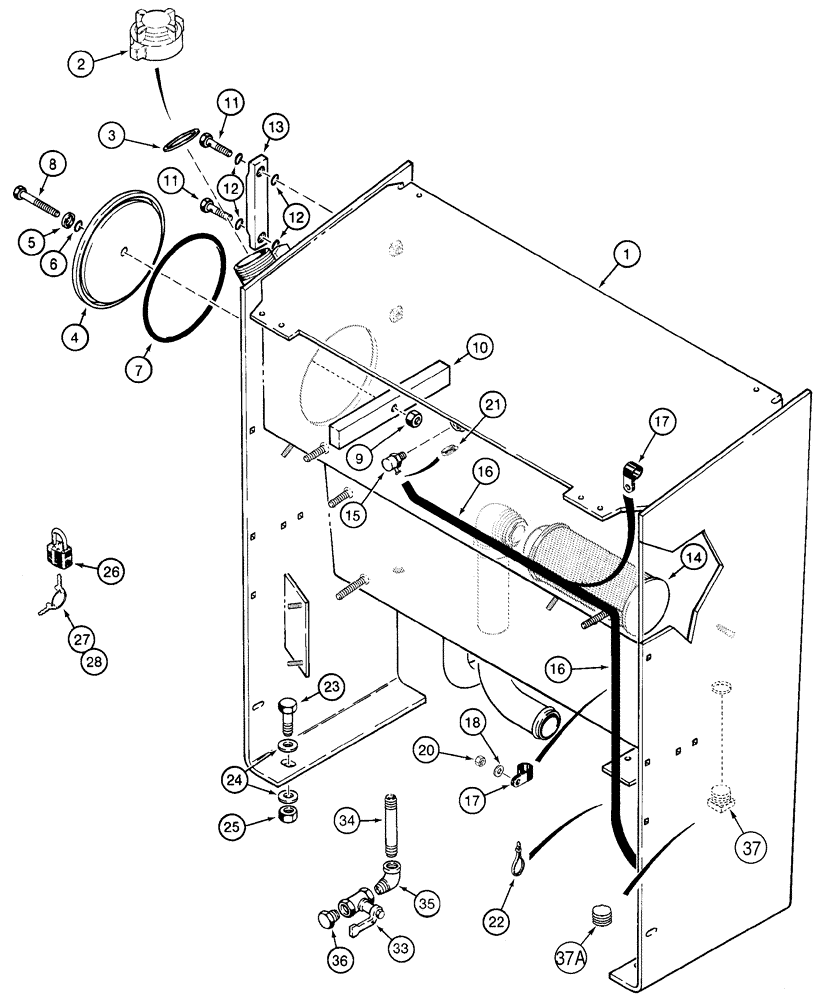

Запчасти Case 821C (08-01) - RESERVOIR (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
All Models -JEE0126215
1шт.
244889A3
TANK, HYDRAULIC OIL
Consists Of 1 - 10, Replaces 244889A1, 244889A2
1шт.
1
NSS
NOT SOLD SEPARAT
Reservoir
1шт.
2
L128669
CAP
Internal Thread
1шт.
3
R46984
GASKET
1шт.
4
L128352
COVER
1шт.
5
L78045
WASHER
1шт.
6
238-5112
O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro
1шт.
7
238-5442
O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro
7-1/4 x 1/4
1шт.
8
113-2462
BOLT,Hex, 1/2" - 13 x 3", Gr 5
1/2 x 1
1шт.
9
131-510
LOCK NUT,1/2"-13
1шт.
10
L50741
BAR
1шт.
L116247
GAUGE
Sight, Oil Level, Consists Of 11 - 13
1шт.
11
N13213
BOLT
2шт.
12
238-7112
O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro
4шт.
13
NSS
NOT SOLD SEPARAT
Gauge
1шт.
14
196955A1
FILTER SCREEN
Suction
1шт.
15
235417A2
BREATHER,3/8" - 18 PTF, 3/8" Hose Barb, 20 Micron
Pressure Relief, Replaces 235417A1
1шт.
All Models -JEE0126215
1шт.
16
31-2281
HOSE,9.5 mm ID x 1828.80 mm
1829 mm (72 in), Drain, Cut From 32-12X
1шт.
17
515-23159
CLAMP,5/8", Insul, 3/8" Bolt
2шт.
18
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
2шт.
20
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
21
214-1704
HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm
1шт.
22
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP , 15 in
1шт.
23
828-16070
BOLT,Hex, M16 x 2 x 70mm, Cl 10.9
4шт.
24
896-15016
WASHER,17.5mm ID x 34mm OD x 5mm Thk
8шт.
25
829-1416
NUT,M16, Cl 10
4шт.
26
D93753
PADLOCK
Includes Keys 27, 28, If Used
1шт.
27
D93751
SET OF 2 KEYS
For Yale Padlock Only, If Used
2шт.
28
R29555
KEY
For Master Padlock Only, If Used
2шт.
33
L124327
DRAIN VALVE
Hydraulic Reservoir
1шт.
34
221-1223
PIPE,Nipple, 3/4" NPT x 6"
1шт.
35
217-1020
90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male
1шт.
36
217-415
PLUG,Hex Hd, 3/4" - 14 NPT
1шт.
37
217-532
DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF
No Longer Used, Order 217-445
1шт.
37a
217-445
PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF
Replaces 217-532
1шт.
Выбрано товаров: 37
