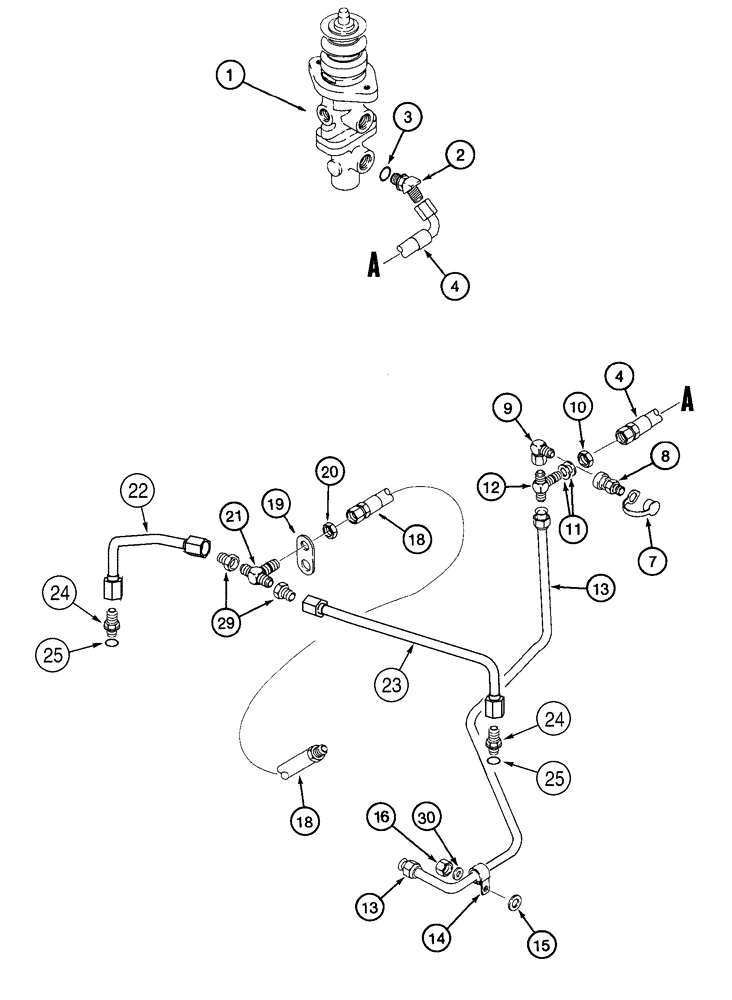

Запчасти Case 821C (07-14) - HYDRAULICS BRAKE, MAIN (07) - BRAKES

Main Brake Valve to Rear Axle

1шт.

Axle 293103A1

1шт.

1

331968A1

VALVE

Main Brake, See Page(s) 7-37

1шт.

2

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Includes 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

338654A1

HOSE ASSY.

1303 mm (51-5/16 in), Rear Brakes

1шт.

7

H434163

DUST CAP

1шт.

8

192834A1

COUPLING

Check Port

1шт.

9

218-5381

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

10

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

11

495-81051

WASHER,29/32" x 1 1/4" x .060"

2шт.

12

218-806

TEE,7/8"-14, 37 Degree, Blkhd

1шт.

13

339467A1

TUBE

1шт.

14

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

15

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

Main Brake Valve to Rear Axle

1шт.

Axle 293103A1

1шт.

18

339461A1

HOSE ASSY.

630 mm (25 in)

1шт.

19

339484A2

BRACKET

Use Bolt From Rear Axle to Mount, Replaces 339484A1

1шт.

20

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

21

218-806

TEE,7/8"-14, 37 Degree, Blkhd

1шт.

22

345520A1

TUBE

Rear Axle, Left Hand

1шт.

23

345518A1

TUBE,9.5 mm OD, 170, 97.4 mm Length

Rear Axle, Right Hand

1шт.

24

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 25

2шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

218-765

REDUCER,37 Degree, 7/8"-14, Fem x 9/16"-18 Male

2шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.
