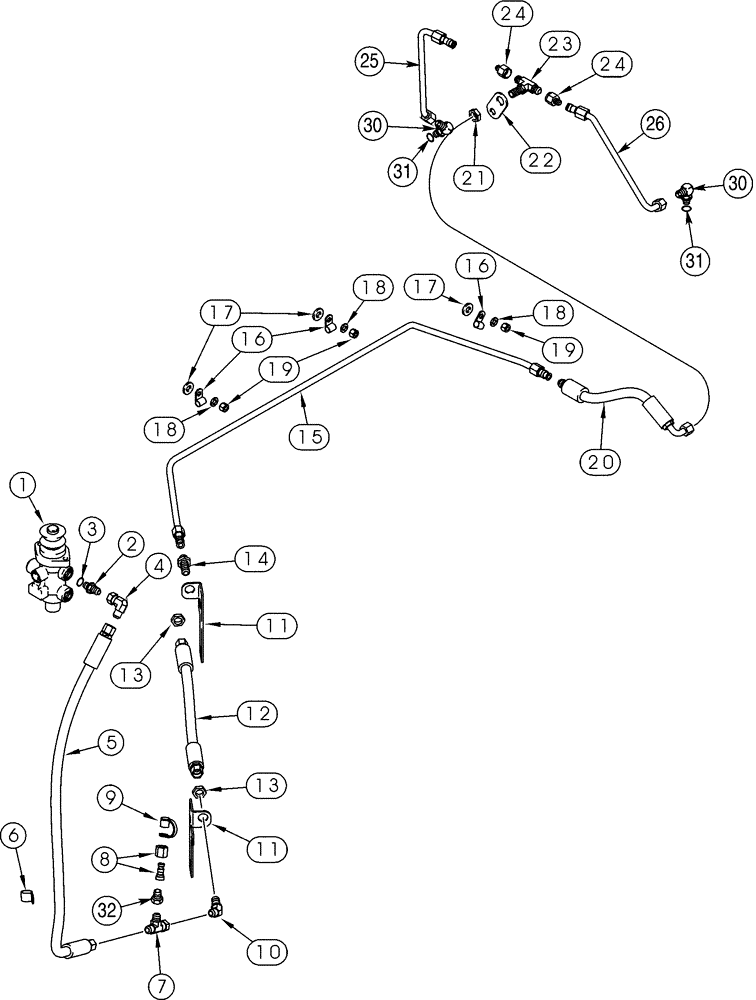

Запчасти Case 821C (07-12) - HYDRAULICS BRAKE, MAIN (07) - BRAKES

Main Brake Valve to Front Axle

1шт.

Axle 293102A1

1шт.

1

331968A1

VALVE

Main Brake Valve, See Page(s) 7-37

1шт.

2

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

5

339503A1

HOSE ASSY.

1075 mm (42-5/16 in), Front Brakes

1шт.

6

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

7

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

fl br x fl x sw, Test Port

1шт.

8

192834A1

COUPLING

1шт.

9

H434163

DUST CAP

1шт.

10

218-716

ELBOW,45 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

11

394275A1

BRACKET

2шт.

12

339528A1

HOSE ASSY.

467 mm (18-3/8 in)

1шт.

13

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

14

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

1шт.

15

339573A2

TUBE

Front Brakes, Replaces 339573A1

1шт.

16

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

3шт.

Main Brake Valve to Front Axle

1шт.

Axle 293102A1

1шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

3шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

3шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

20

339576A1

HOSE ASSY.

322 mm (12-11/16 in)

1шт.

21

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

22

339484A2

BRACKET

Use Bolt From Front Axle To Mount, Replaces 339484A1

1шт.

23

218-806

TEE,7/8"-14, 37 Degree, Blkhd

1шт.

24

218-765

REDUCER,37 Degree, 7/8"-14, Fem x 9/16"-18 Male

2шт.

25

339642A2

TUBE

LH, Replaces 339642A1

1шт.

26

339638A2

TUBE

RH, Replaces 339638A1

1шт.

30

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 31

2шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

1шт.
