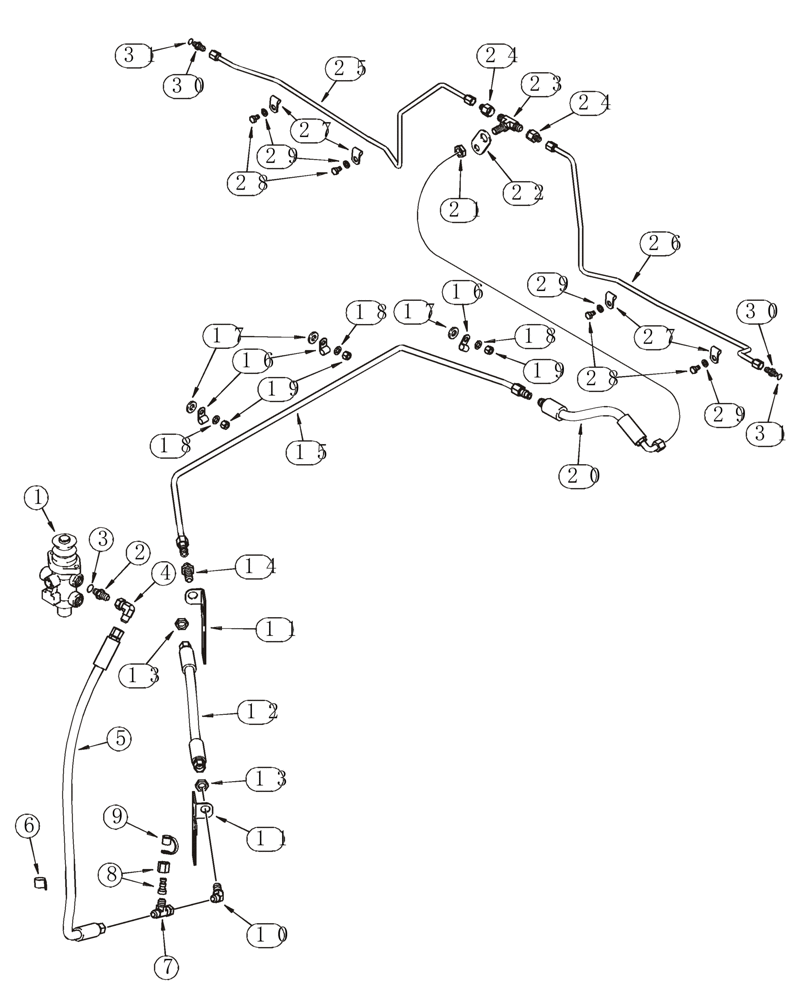

Запчасти Case 821C (07-11) - HYDRAULICS BRAKE, MAIN (07) - BRAKES
№
Артикул
Название
Примечание
Количество
Main Brake Valve to Front Axle
1шт.
Axle 229849A1
1шт.
1
331968A1
VALVE
Main Brake Valve, See Page(s) 7-37
1шт.
2
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
Incl. 3
1шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
4
218-5230
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw
1шт.
5
238408A2
HOSE ASSY.
1075 mm (42-5/16 in), Front Brakes
1шт.
6
515-23222
CLAMP,7/8", Insul, 3/8" Bolt
1шт.
7
218-845
TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run
Test Port
1шт.
8
192834A1
COUPLING
1шт.
9
H434163
DUST CAP
1шт.
10
218-715
ELBOW,45 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree
1шт.
11
192609A1
SUPPORT
2шт.
12
192816A1
HOSE
492 mm (19-3/8 in)
1шт.
13
218-1255
BHD LOCK NUT,Blkhd, 3/4"-16
2шт.
14
218-674
FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree
1шт.
15
192794A1
TUBE
Front Brakes
1шт.
16
515-23127
CLAMP,1/2", Insul, 3/8" Bolt
3шт.
Main Brake Valve to Front Axle
1шт.
Axle 229849A1
1шт.
17
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
13,5 x 28 x 4 mm
3шт.
18
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
11 x 21 x 2 mm
3шт.
19
832-10410
NUT,M10 x 1.5, Cl 8
3шт.
20
192819A1
HOSE
365 mm (14-3/8 in)
1шт.
21
218-1255
BHD LOCK NUT,Blkhd, 3/4"-16
1шт.
22
189274A1
SPACER
Use Bolt From Front Axle To Mount
1шт.
23
218-805
TEE,3/4"-16, 37 Degree, Blkhd
fl br x fl x fl
1шт.
24
218-786
REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male
2шт.
25
192812A1
TUBE
LH
1шт.
26
192811A1
TUBE
RH
1шт.
27
515-2495
CLAMP,3/8", Insul, 7/16" Bolt
4шт.
28
426-68
BOLT,Hex, 3/8" - 16 x 1/2", Gr 8
4шт.
29
492-11038
LOCK WASHER,3/8"
4шт.
30
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
Incl. 31
2шт.
31
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 35
