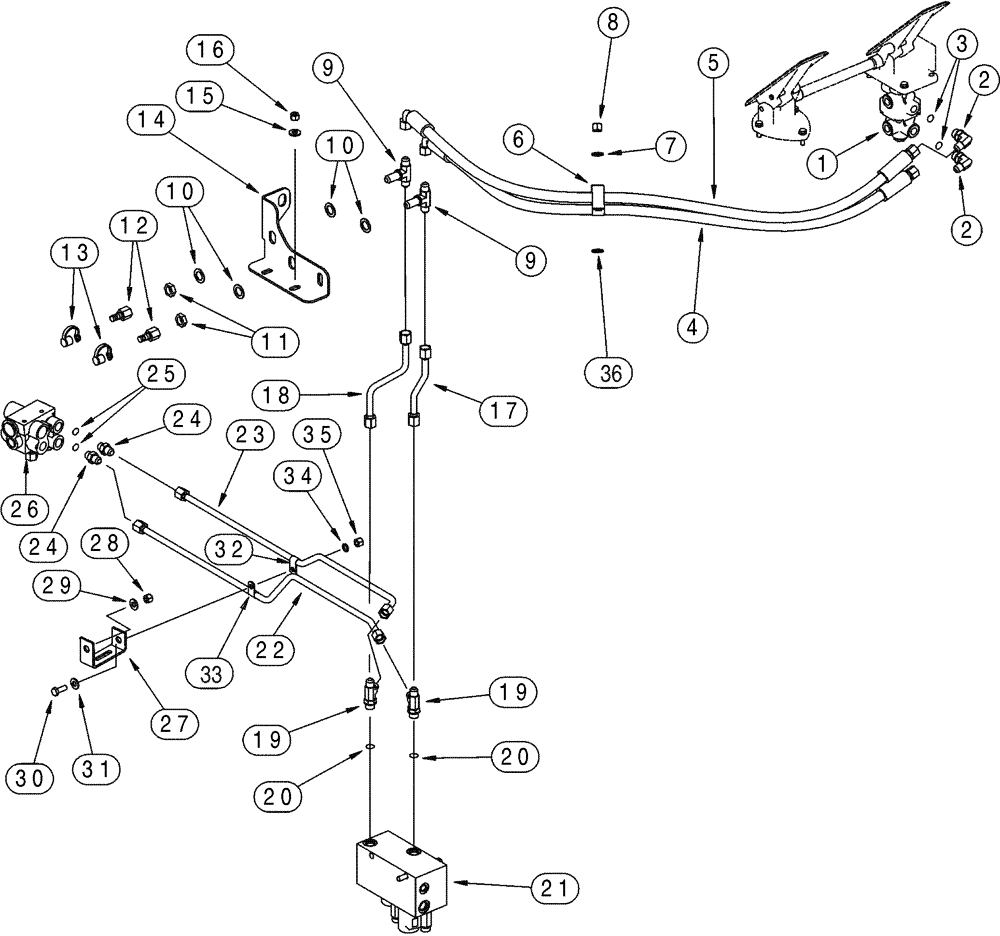

Запчасти Case 821C (07-10) - HYDRAULICS BRAKE, MAIN (07) - BRAKES

.

Main Brake Valve To Front and Rear Axles

1шт.

.

All Models JEE0126216-

1шт.

1

331968A1

VALVE

See Page(s) 7-37, For Mounting, See Page(s) 7-5

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238410A1

HOSE ASSY.

1342 mm (52-7/8 in)

1шт.

5

238411A1

HOSE ASSY.

1418 mm (55-7/8 in)

1шт.

6

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

1шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

8

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

9

218-805

TEE,3/4"-16, 37 Degree, Blkhd

fl br x fl x fl

2шт.

10

495-81037

WASHER,25/32" x 1 1/4" x .060"

4шт.

11

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

2шт.

12

192834A1

COUPLING

Quick Disconnect, Diagnostic

2шт.

13

H434163

DUST CAP

2шт.

14

366180A1

BRACKET

1шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

17

241138A2

TUBE,12.7 mm OD

Supply, Rear

1шт.

18

241137A2

TUBE,12.7 mm OD

Supply, Front

1шт.

19

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 20

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

.

Main Brake Valve To Front and Rear Axles

1шт.

.

All Models JEE0126216-

1шт.

21

407165A1

VALVE

Combination, See Page(s) 8-189F

1шт.

22

434720A1

TUBE

Rear Brake Pressure

1шт.

23

434718A1

HOSE ASSY.

Front Brake Pressure

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

426168A1

VALVE

Accumulator Charging, See Page(s) 7-31, Valve with fan with 4 ports

1шт.

27

434723A1

BRACKET

1шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

29

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

30

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

31

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

32

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

33

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.

34

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

35

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

36

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.
