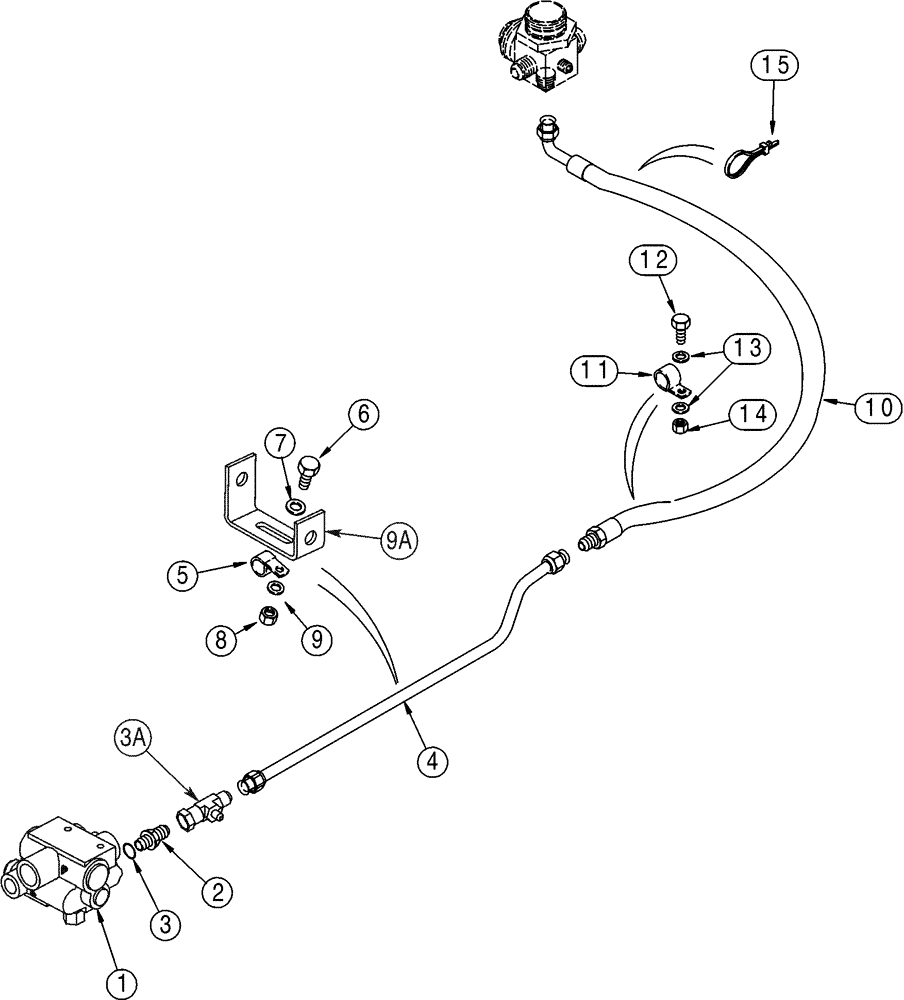

Запчасти Case 821C (07-08) - HYDRAULICS BRAKE, MAIN (07) - BRAKES

Accumulator Valve to Return Port On Orifice Valve Block Tube

1шт.

All Models JEE0126216-

1шт.

1

232531A1

VALVE

Brake Accumulator Valve, Accumulator Charging, Component Parts Not Serviced Separately

1шт.

232531A1R

REMAN-HYD VALVE

821C P.I.N. JEE00155000 & Before

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3, For Auxiliary Steering, See Page(s) 5-35

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3a

218-5484

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run x 7/16"-20

1шт.

4

434722A1

TUBE

Brake Accumulator Charging Valve

1шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

Accumulator Valve to Return Port On Orifice Valve Block Tube

1шт.

All Models JEE0126216-

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

9a

434723A1

BRACKET

1шт.

10

317920A1

HOSE ASSY.

1079 mm (42-1/2 in), Attaches to Bottom Port on 108748A1 Manifold

1шт.

11

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

13

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.
