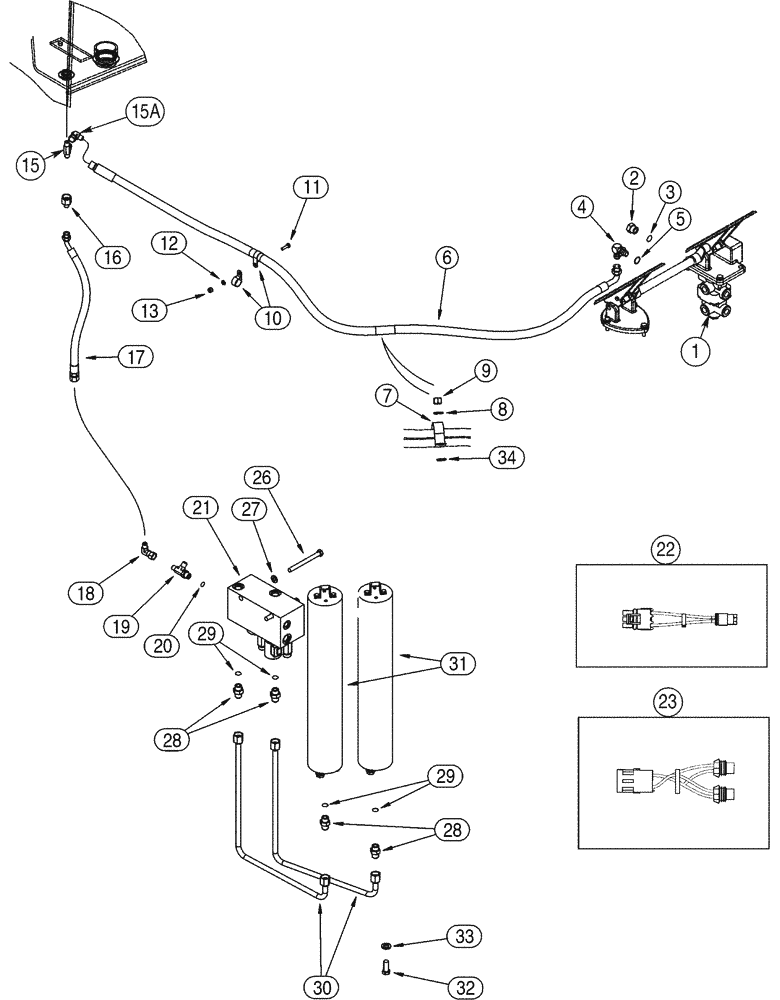

Запчасти Case 821C (07-05) - HYDRAULICS BRAKE, MAIN (07) - BRAKES

Valve Drain to Hydraulic Tank

1шт.

Brake Valve, Combination Valve and Accumulator

1шт.

All Models -JEE0126215

1шт.

1

331968A1

VALVE

See Page(s) 7-37, For Mounting, See Page(s) 7-5

1шт.

2

214389

PLUG,3/4" - 16 ORB

Includes Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

305806A1

HOSE ASSY.

1583 mm (62-5/16 in), Brake Valve to Tee at Hydraulic Tank

1шт.

7

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

1шт.

8

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

10

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

2шт.

11

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

13

231-1446

NUT,3/8" - 16, Gr 5

1шт.

Valve Drain to Hydraulic Tank

1шт.

Brake Valve, Combination Valve and Accumulator

1шт.

All Models -JEE0126215

1шт.

15

218-614

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

At Hydraulic Tank

1шт.

15a

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

16

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

1шт.

17

317112A1

HOSE ASSY.

630 mm (24-13/16 in), Drain

1шт.

18

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

19

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 20, Port 'T'

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

198998A3

VALVE

Combination Valve, See Page(s) 8-187, 8-189, No Longer Available, Order 407165A1, REF 25; 431057A1, REF 22; 431058A1, REF 23

1шт.

22

431057A1

HARNESS

Jumper

1шт.

23

431058A1

HARNESS

Jumper

1шт.

Valve Drain to Hydraulic Tank

1шт.

Brake Valve, Combination Valve and Accumulator

1шт.

All Models -JEE0126215

1шт.

24

198998A4

VALVE

Combination Valve, See Page(s) 8-189B, 8-189D, No Longer Available, Order 407165A1, REF 25; 431057A1, REF 22; 431058A1, REF 23, Not Illustrated

1шт.

25

407165A1

VALVE

Combination Valve, See Page(s) 8-189F, Not Illustrated

1шт.

26

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

28

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 29

4шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

365944A1

TUBE,12.7 mm OD, 394, 297 mm Length

Accumulator

2шт.

31

365757A1

ACCUMULATOR

3,0 Liter; Used On Models After S/N JEE0123402; See Page(s) 7-39; If Used

2шт.

31

284444A1

ACCUMULATOR

1,9 Liter; Used On Models Prior To S/N JEE0123403; If Used

2шт.

31a

8605647

ACCUMULATOR

Includes 8604883 Seal Kit; If Used

2шт.

32

414-814

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

6шт.

33

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

34

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.
