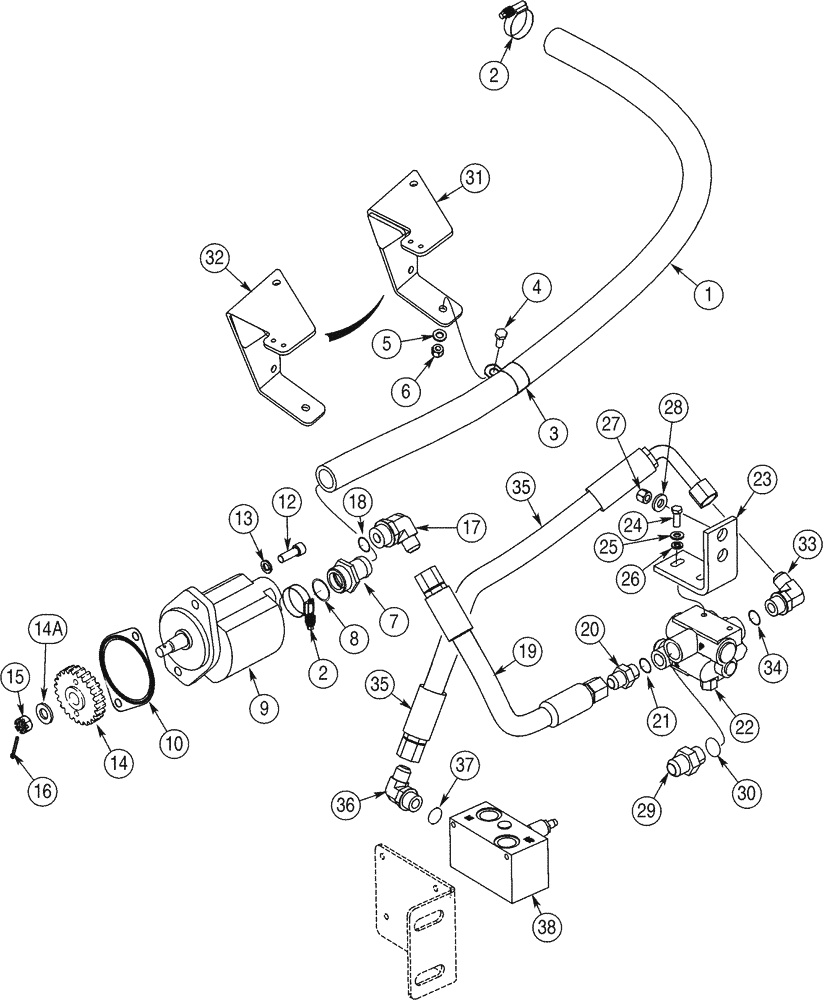

Запчасти Case 821C (07-04) - HYDRAULICS BRAKE, MAIN (07) - BRAKES

.

Reservoir to Pump to Accumulator Valve

1шт.

.

All Models JEE0126216-

1шт.

1

434703A1

HOSE,31.80 mm ID x 1225.00 mm, SAE 100R4

Brake Motor Supply at Reservoir

1шт.

2

353036A1

HOSE CLAMP,32mm - 54mm

2шт.

3

515-25444

CLAMP,1 3/4", Insul, 7/16" Bolt

1шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

5

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

7

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Incl. 8

1шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

9

397441A1

PUMP, HYDRAULIC,28 CC

Brake, Component Parts Not Serviced Separately

1шт.

10

144169C2

GASKET,0.79mm Thk

1шт.

12

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

2шт.

13

892-11012

LOCK WASHER,M12

2шт.

14

J924187

PINION

Brake Pump

1шт.

14a

496-81014

WASHER,0.69" ID x 1.31" OD x 0.15" Thk

1шт.

15

425-1310

SLOTTED NUT,5/8"-18, G5

1шт.

16

432-1020

COTTER PIN,5/32" x 1 1/4"

1шт.

.

Reservoir to Pump to Accumulator Valve

1шт.

.

All Models JEE0126216-

1шт.

17

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

434702A1

HOSE ASSY.

465 mm (18-5/16 in), Pump to Accumulator Valve

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

232531A1

VALVE

Brake Accumulator Valve, Component Parts Not Serviced Separately, Valve with a fan with 3 ports

1шт.

23

L129987

BRACKET

1шт.

24

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

29

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

Includes 30

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

.

Reservoir to Pump to Accumulator Valve

1шт.

.

All Models JEE0126216-

1шт.

31

440481A2

BRACKET

North America Only, Attaches to Cylinder Head

1шт.

32

413430A2

BRACKET

Europe Only, Attaches to Cylinder Head

1шт.

33

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 34

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

35

434550A1

HOSE ASSY.

625 mm (24-5/8 in)

1шт.

36

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 37

1шт.

37

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

38

433292A2

VALVE, PRESSURE RELI

EF , See Page(s) 8-189J

1шт.
