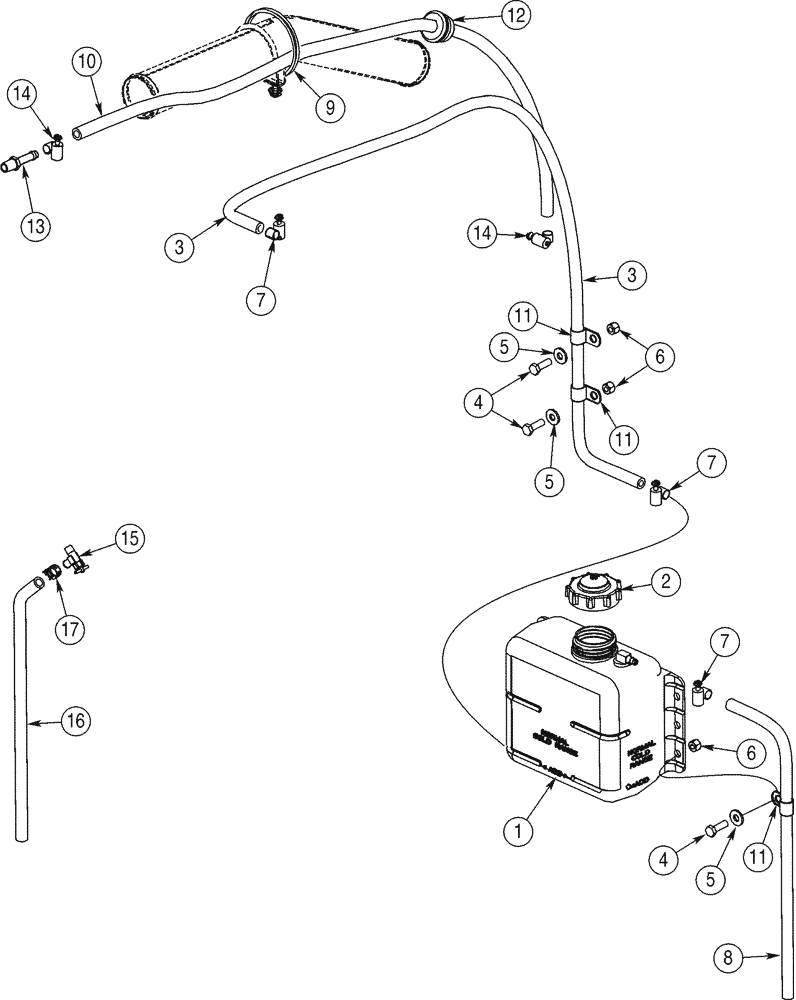

Запчасти Case 821C (02-10) - COOLANT RECOVERY SYSTEM (02) - ENGINE

All Models JEE0126216 -

1шт.

1

A184395

RESERVOIR

1шт.

2

1547924C1

CAP

1шт.

3

31-2939

HOSE,7.9 mm ID x 1270.00 mm

1270 mm (50 in), Radiator To Reservoir

1шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

5

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

4шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

7

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

Overflow Hose To Reservoir

3шт.

8

396120A1

HOSE,7.9mm ID x 495.3mm L

Recovery Overflow

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

10

31-2308

HOSE,0.38" ID x 48.00"

1219 mm (48 in), Engine Vent

1шт.

11

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

12

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

5/8 ID

1шт.

13

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

14

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

15

301803R1

SHUT-OFF VALVE

1шт.

16

32-332

HOSE

666 mm (26-1/4 in), Cut From A42610

1шт.

17

1954736C1

HOSE CLAMP,#24

1шт.
