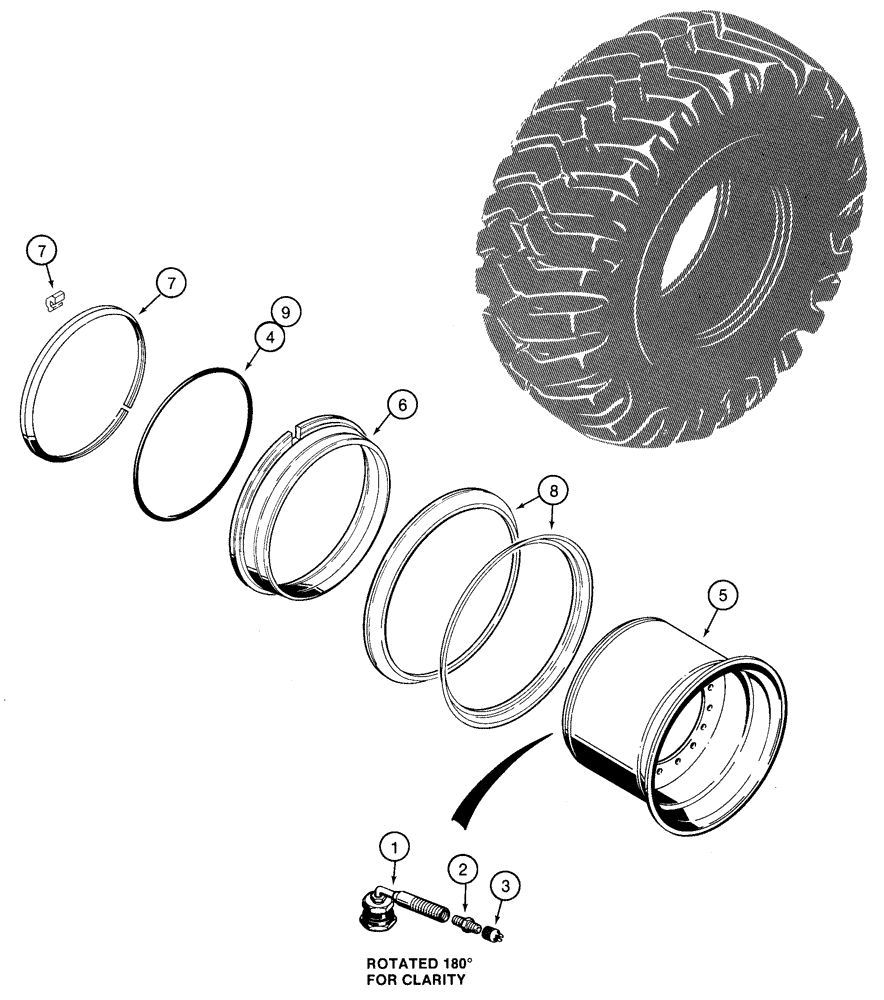

Запчасти Case 821C (06-46) - WHEELS (06) - POWER TRAIN

For 23.5 x 25 Tires - Five Piece Wheel

1шт.

North America and Europe

1шт.

1

L11405

VALVE

4шт.

2

L11406

ADAPTER

4шт.

3

L19664

VALVE STEM

4шт.

4

A16425

O-RING,10.29mm Thk x 573.02mm ID, 65 Duro

Order Separately

4шт.

L125012

WHEEL ASSY.

23.5 x 25, Consists Of 5 - 9, If Used

4шт.

5

NSS

NOT SOLD SEPARAT

Rim, Wheel

1шт.

6

N8673

RING

Bead Seat, For Wheels Stamped With No. 01110200L1

1шт.

6

A16423

RING

RING SNAP , Bead Seat, For Wheels Stamped With No. 51-48117-0399

1шт.

6

S300921

BAND

RING, LOCK , Bead Seat, For Wheels Stamped With No. 90145

1шт.

7

N8672

RING, SNAP

RING SNAP , Lock, With Driver, For Wheels Stamped With No. 01110200L1

1шт.

For 23.5 x 25 Tires - Five Piece Wheel

1шт.

North America and Europe

1шт.

7

A16424

RING, LOCKING

RING, LOCK , Lock, With Driver, For Wheels Stamped With No. 51-48117-0399

1шт.

7

S300920

RING, LOCKING

RING, LOCK , Lock, With Driver, For Wheels Stamped With No. 90145

1шт.

8

N8671

RING

Side Rim, For Wheels Stamped With No. 01110200L1

2шт.

8

L12690

RING, SNAP

RING SNAP , Side Rim, For Wheels Stamped With No. 51-48117-0399

2шт.

8

S300919

FLANGE

Side Rim, For Wheels Stamped With No. 90145

2шт.

9

A16425

O-RING,10.29mm Thk x 573.02mm ID, 65 Duro

Note: Purchase Tires Locally, Nota : Acheter les pneus localement., Nota: Comprar los neumáticos localmente

1шт.
