Запчасти Case 821C (06-44) - WHEELS (06) - POWER TRAIN

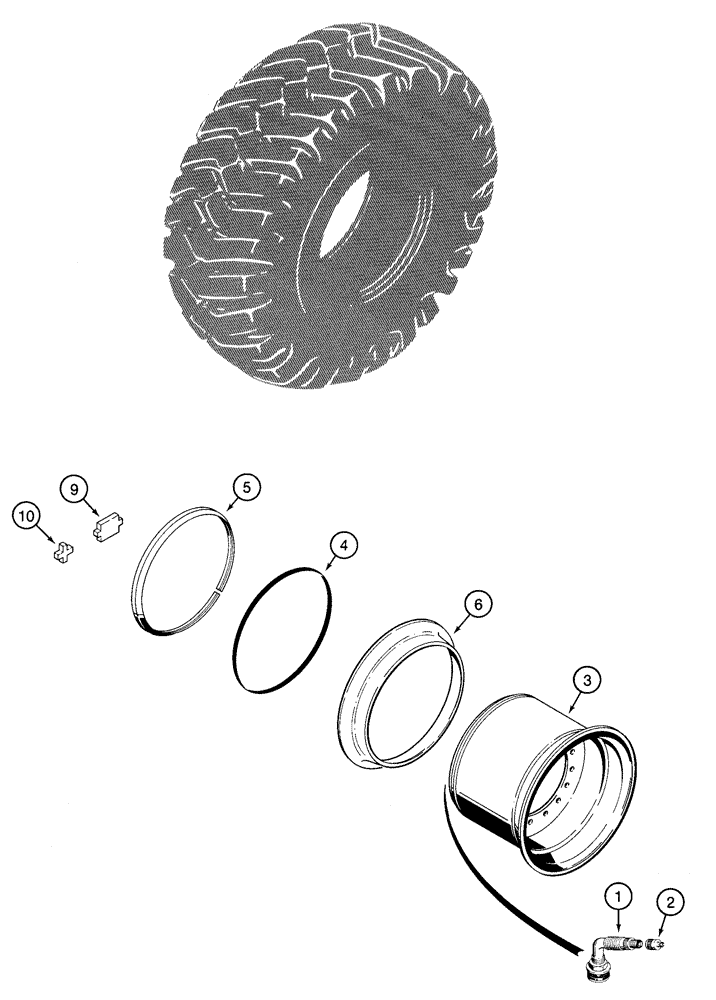

Схема запчастей Case 821C - (06-44) - WHEELS (06) - POWER TRAIN
9
2
1
6
3
10
4
5

Артикул

Название

Примечание

Количество

For 20.5 x 25 Tires - Three Piece Wheel

1шт.

North America Only

1шт.

1

L48133

VALVE STEM

Includes 2

4шт.

2

L19664

VALVE STEM

1шт.

L128693

WHEEL

20.5 x 25, Consists Of 3 - 10, If Used

4шт.

3

NSS

NOT SOLD SEPARAT

Rim, Wheel

1шт.

4

A19101

O-RING,6.6mm Thk x 590.55mm ID

1шт.

5

S301692

RING, LOCKING

RING, LOCK , For Wheels Stamped With No. 90222

1шт.

5

A19100

LOCKING RING

For Wheels Stamped With No. 51-48296-0399

1шт.

6

S301693

RING

For Wheels Stamped With No. 90222

1шт.

6

S301694

RING

For Wheels Stamped With No. 51-48296-0399

1шт.

9

S301691

BLOCK DRIVER

For Wheels Stamped With No. 90222

1шт.

10

S301695

BLOCK DRIVER

For Wheels Stamped With No. 51-48296-0399

1шт.

Note: Purchase Tires Locally

1шт.

Nota : Acheter les pneus localement.

1шт.

Nota: Comprar los neumáticos localmente

1шт.

Выбрано товаров: 16
