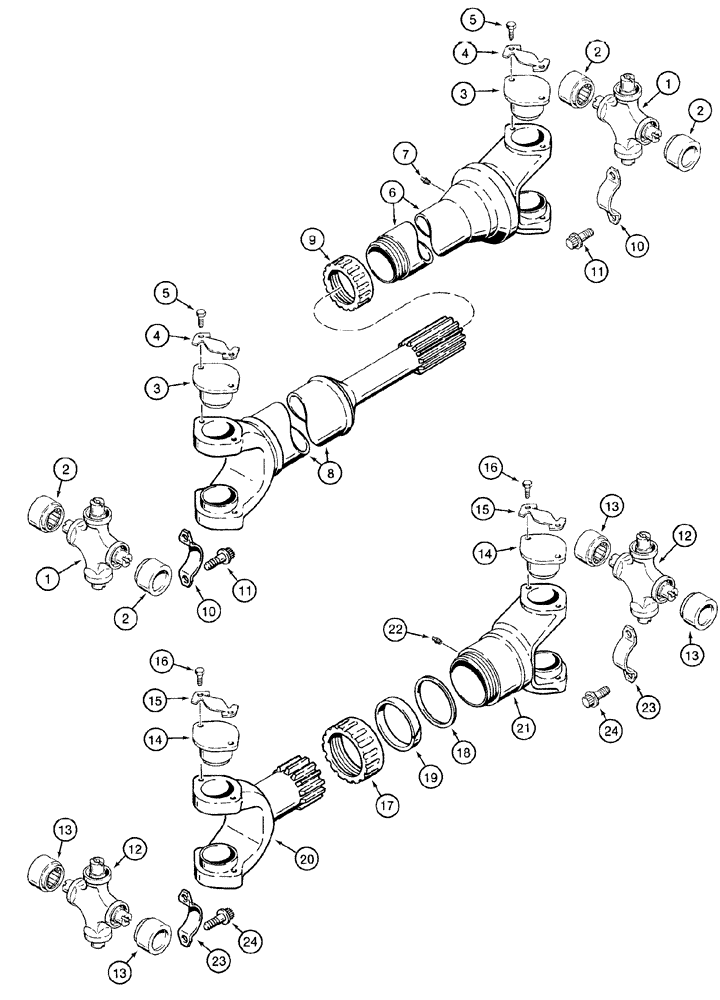

Запчасти Case 821C (06-43) - DRIVE SHAFT CENTER AND REAR (06) - POWER TRAIN

.

Center Drive Shaft

1шт.

.

103711A1

STEERING SHAFT

Includes 1 - 9

1шт.

.

120245A1

SPIDER

Includes 1 - 5

2шт.

1

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

2

NSS

NOT SOLD SEPARAT

Race

2шт.

3

NSS

NOT SOLD SEPARAT

Cap

2шт.

4

S300317

SUPPORT

2шт.

5

S300316

BOLT

4шт.

6

S300314

HALF SHAFT

Transmission End

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

120252A1

COUPLING

Axle End

1шт.

9

S300318

CAP

1шт.

10

L125187

SUPPORT

Bearing

4шт.

11

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

Bearing Strap

8шт.

.

Rear Drive Shaft

1шт.

.

393024A1

DRIVE SHAFT

Includes 12 - 22,

1шт.

.

120245A1

SPIDER

Includes 12 - 16

2шт.

12

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

13

NSS

NOT SOLD SEPARAT

Race

2шт.

14

NSS

NOT SOLD SEPARAT

Cap

2шт.

15

S300317

SUPPORT

2шт.

16

S300316

BOLT

Bearing Strap

4шт.

17

S300345

CAP

1шт.

18

S300646

WASHER

Steel

1шт.

19

S300647

WASHER

Cork

1шт.

20

120246A1

COUPLING

Axle End

1шт.

21

S300344

YOKE

UNIVERSAL JOINT YOKE , Transmission End

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

23

L125187

SUPPORT

4шт.

24

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

8шт.
