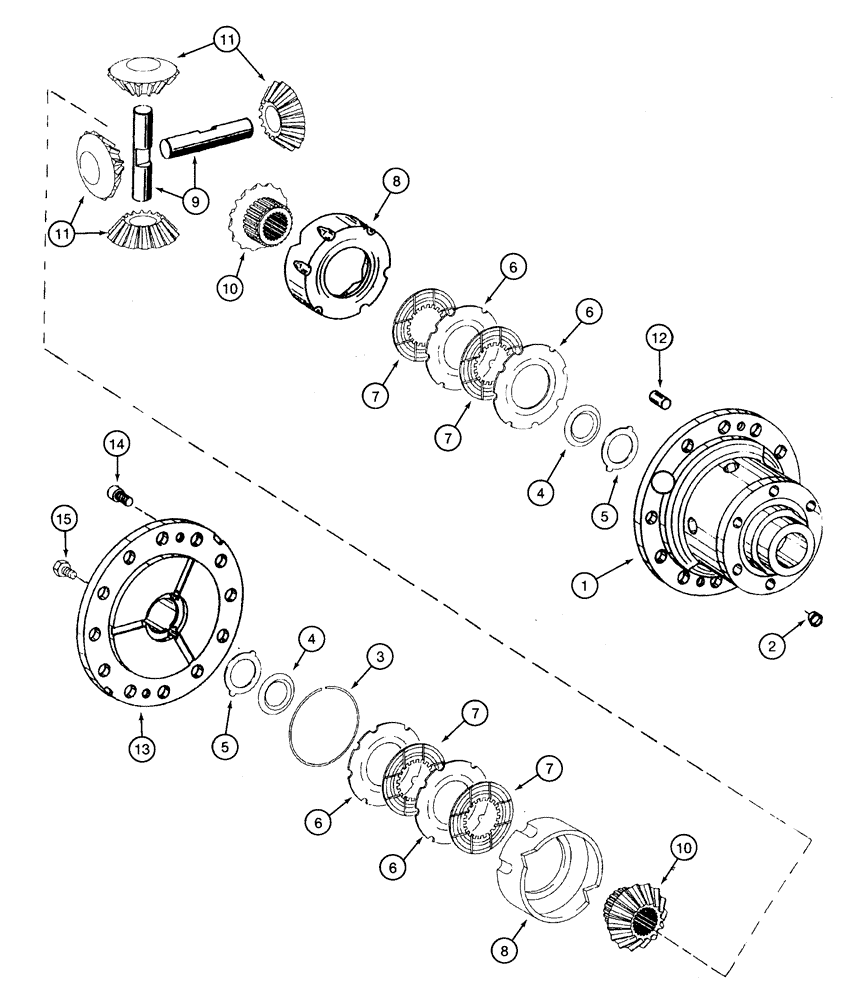

Запчасти Case 821C (06-40) - AXLE, REAR DIFFERENTIAL -JEE0123402 (06) - POWER TRAIN

229848A1

AXLE

Rear ZF No 4474 005 184, See Page(s) 6-23, 33, 35, 38, 40, If Used

1шт.

232423A1

DIFFERENTIAL

Consists Of 6-87 - 6-91

1шт.

184721A1

DIFFERENTIAL

Includes 1-15

1шт.

1

184722A1

HOUSING

1шт.

2

177715A1

SEAL

6шт.

3

119329A1

RING, SNAP

RING SNAP

1шт.

4

119330A1

THRUST WASHER

2шт.

5

242180A1

THRUST WASHER

2шт.

6

230548A1

THRUST WASHER

Outer Clutch

4шт.

6

230549A1

DISC

2,4 mm, Outer Clutch

4шт.

6

230550A1

DISC

2,3 mm, Outer Clutch

4шт.

6

230551A1

DISC

2,5 mm, Outer Clutch

4шт.

7

177732A1

DISC

Inner Clutch

4шт.

8

119337A1

RING, SNAP

RING SNAP

2шт.

9

119338A1

SHAFT

Pinion

2шт.

10

119339A1

PINION

16T, Side

2шт.

11

119340A1

PINION

11T

4шт.

12

119341A1

PIN

12шт.

13

184724A1

COVER

1шт.

14

193152A1

BOLT

2шт.

15

184725A1

BOLT

12шт.
