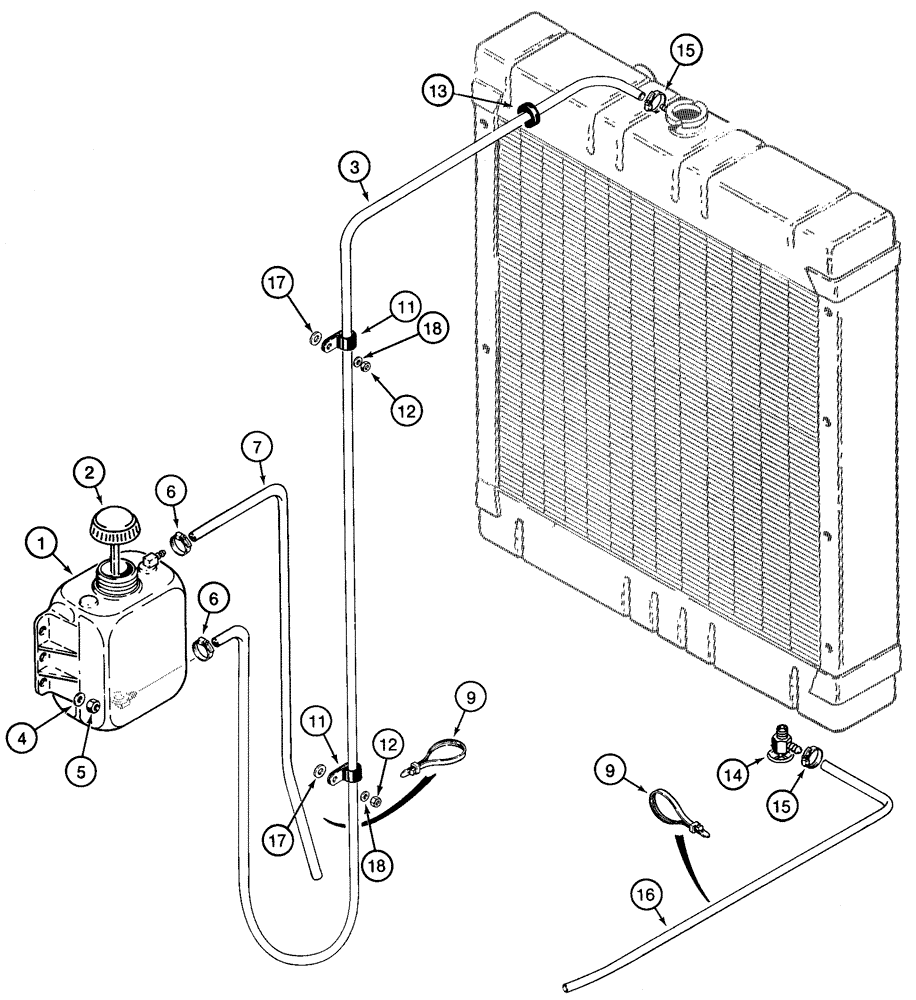

Запчасти Case 821C (02-09) - COOLANT RECOVERY SYSTEM (02) - ENGINE

All Models, : -JEE0126215

1шт.

1

103846A1

CONTAINER

1шт.

2

1547924C1

CAP

1шт.

3

L125870

HOSE,7.9 mm ID x 1370.00 mm, SAE 30R6

Radiator to Reservoir

1шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

A171099

HOSE CLAMP,13.2mm - 15.4mm

Overflow Hose To Reservoir

2шт.

7

L115506

HOSE,7.9 mm ID x 1219.00 mm, SAE 30R1

Reservoir Drain

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

2шт.

11

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

To Radiator Guard

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

248-13107

GROMMET,3/4" ID x 1 1/16" Groove Dia, Str Cut

1шт.

14

A27862

COCK, DRAIN

Radiator

1шт.

15

A171099

HOSE CLAMP,13.2mm - 15.4mm

2шт.

16

D71599

HOSE,6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

Cut From P/N A21561X

1шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm, Replaces 896-11008

2шт.

18

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.
