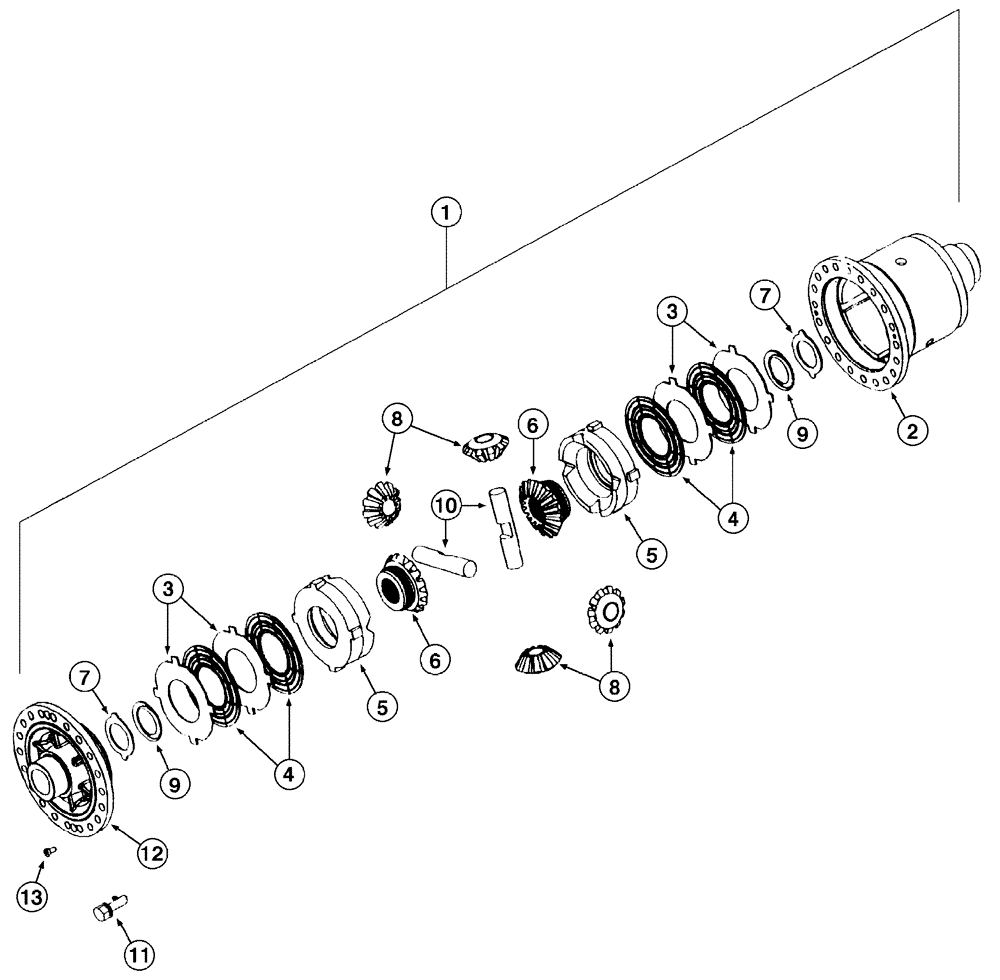

Запчасти Case 821C (06-32) - AXLE, FRONT DIFFERENTIAL JEE0123403- (06) - POWER TRAIN

293102A1

AXLE

Front ZF No 4474 053 007, See Page(s) 6--23, 25, 27, 28, 30, 32 If Used

1шт.

1

384473A1

AXLE DIFFERENTIAL

Limited Slip, Consists Of 1-13, Also Includes 6-75B, 6-75D

1шт.

2

384474A1

HOUSING

1шт.

3

242155A1

CLUTCH DISC

CLUTCH DISK , 2,9 mm, Outer

4шт.

3

242156A1

CLUTCH DISC

CLUTCH DISK , 3,1 mm, Outer

4шт.

3

242157A1

CLUTCH PLATE

CLUTCH DISK , 2,7 mm, Outer

4шт.

3

242158A1

CLUTCH PLATE

CLUTCH DISK , 3,3 mm, Outer

4шт.

4

242159A1

CLUTCH PLATE

CLUTCH DISK , Intermediate, Inner

4шт.

5

243354A1

THRUST RING

2шт.

6

242160A1

PINION

16T, Side

2шт.

7

120017A1

THRUST WASHER

Outer

2шт.

8

120018A1

PINION

4шт.

9

120019A1

THRUST WASHER

Inner

2шт.

10

120020A1

PIN

Pinion

2шт.

11

184716A1

SCREW

20шт.

12

385426A1

COVER

1шт.

13

193152A1

BOLT

2шт.
