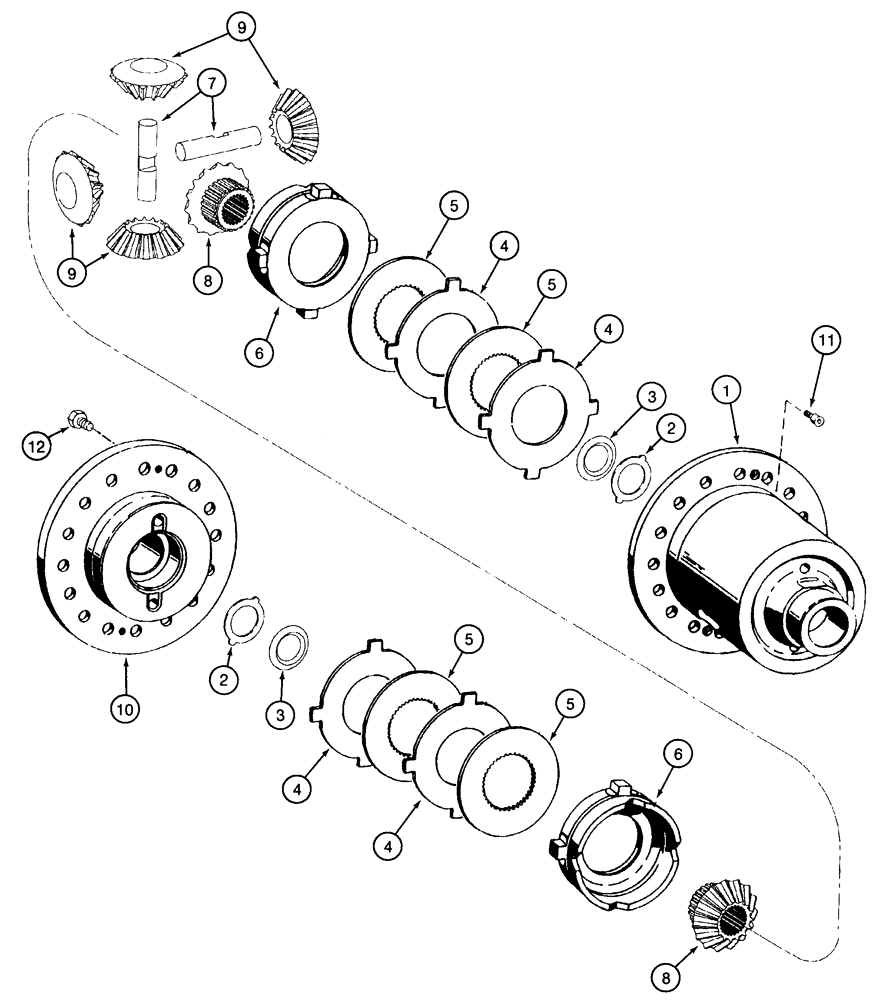

Запчасти Case 821C (06-31) - AXLE, FRONT DIFFERENTIAL -JEE0123402 (06) - POWER TRAIN

229849A1

AXLE

Front ZF No 4474 006 111, See Page(s) 6-22, 24, 26, 29, 31; If Used

1шт.

232422A1

DIFFERENTIAL

Limited Slip, Consists Of 1-12

1шт.

1

243353A1

HOUSING

1шт.

2

120017A1

THRUST WASHER

Outer

2шт.

3

120019A1

THRUST WASHER

Inner

2шт.

4

242154A1

CLUTCH DISC

CLUTCH DISK 3.0 MM Outer

4шт.

4

242155A1

CLUTCH DISC

CLUTCH DISK , 2,9 mm, Outer

4шт.

4

242156A1

CLUTCH DISC

CLUTCH DISK , 3,1 mm, Outer

4шт.

4

242157A1

CLUTCH PLATE

CLUTCH DISK , 2,7 mm, Outer

4шт.

4

242158A1

CLUTCH PLATE

CLUTCH DISK , 3,3 mm, Outer

4шт.

5

242159A1

CLUTCH PLATE

CLUTCH DISK , Intermediate, Inner

4шт.

6

243354A1

THRUST RING

2шт.

7

120020A1

PIN

Pinion

2шт.

8

242160A1

PINION

16T, Side

2шт.

9

120018A1

PINION

4шт.

10

242161A1

COVER

1шт.

11

193152A1

BOLT

2шт.

12

184716A1

SCREW

20шт.
