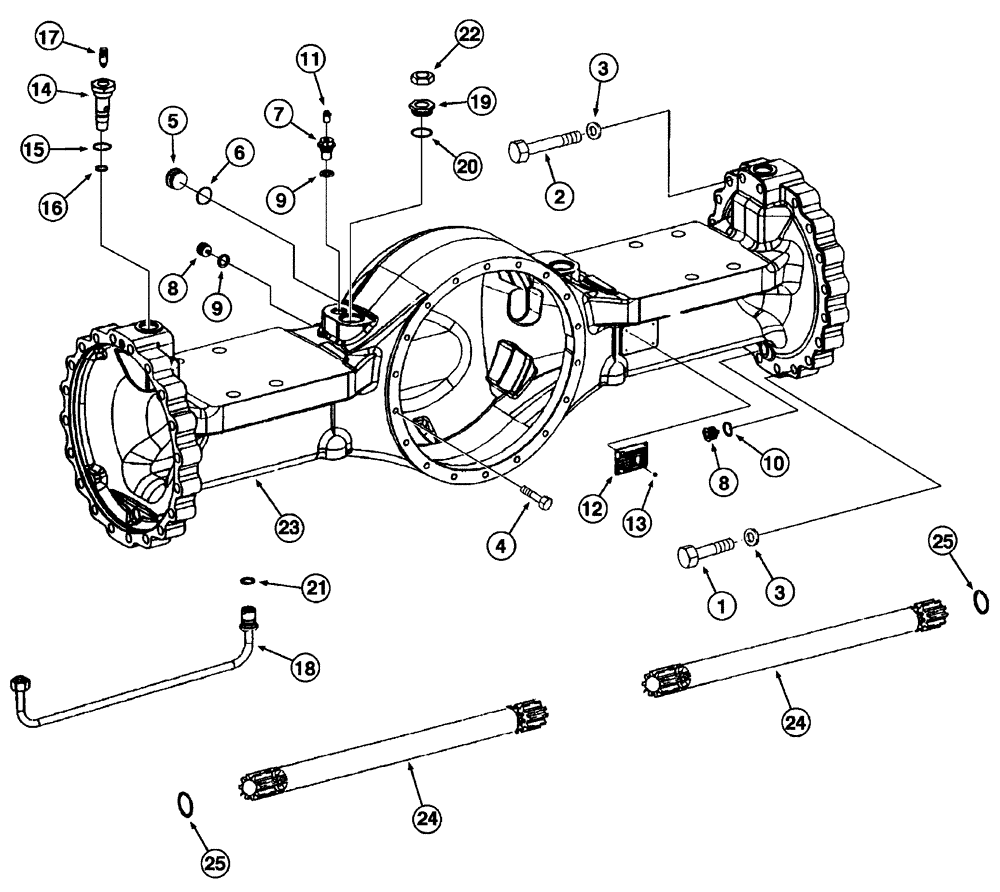

Запчасти Case 821C (06-25) - AXLE, FRONT HOUSING JEE0123403- (06) - POWER TRAIN

293102A1

AXLE

Front ZF No 4474 053 007, See Page(s) 6--23, 25, 27, 28, 30, 32 If Used

1шт.

1

384402A1

BOLT

M18 x 95

36шт.

2

384403A1

BOLT

M18 x 140

4шт.

3

A48928

WASHER

40шт.

4

A52094

FLANGE BOLT

Differential To Axle Housing

18шт.

5

384280A1

PLUG

2шт.

6

81284C1

O-RING,2.2mm Thk x 33mm ID

2шт.

7

8603256

PLUG

1шт.

8

384281A1

PLUG

3шт.

9

A52097

O-RING,2mm Thk x 21mm ID

2шт.

10

A48812

SEALING RING,M24 x 29 x 1.5

2шт.

11

A48855

VALVE

1шт.

12

NSS

NOT SOLD SEPARAT

Plate

1шт.

13

932658R1

GROOVED PIN,Rd Hd, M3 x 5

4шт.

14

384282A1

FITTING

2шт.

15

81284C1

O-RING,2.2mm Thk x 33mm ID

2шт.

16

384283A1

FITTING

2шт.

17

3222214R1

VALVE

2шт.

18

384475A1

TUBE

No Longer Used; Replaced By 87436739

2шт.

18

87436739

TUBE

Replaces 384475A1

2шт.

19

384285A1

UNION

2шт.

20

A52096

O-RING,2.5mm Thk x 38mm ID

2шт.

21

716582R1

O-RING

2шт.

22

384286A1

NUT

2шт.

23

384476A1

AXLE

1шт.

24

384477A1

AXLE SHAFT

2шт.

25

384408A1

SHIM

2шт.
