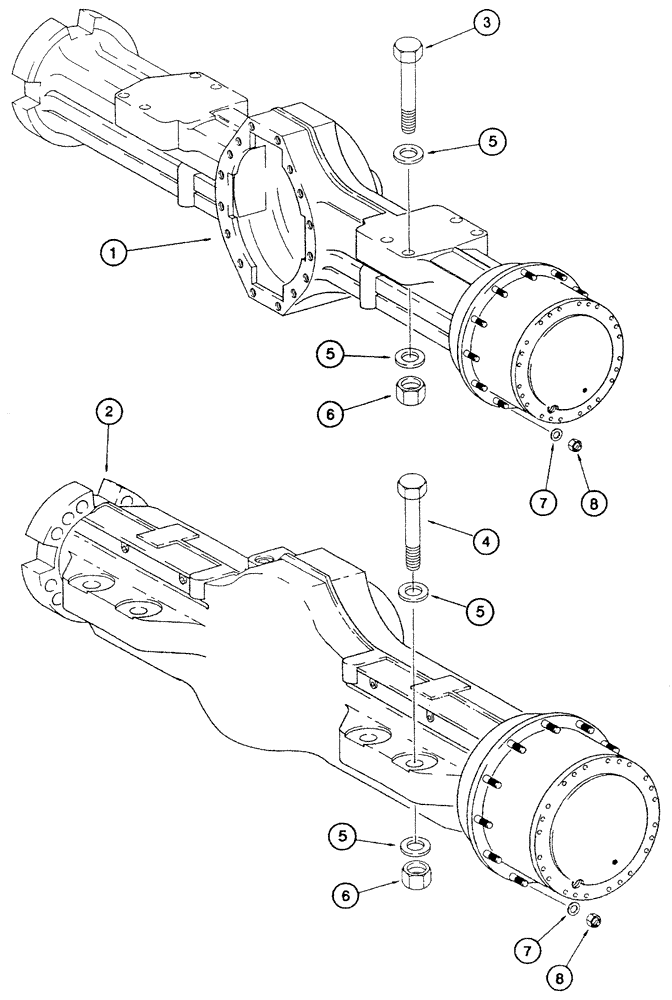

Запчасти Case 821C (06-22) - AXLE MOUNTING -JEE0123402 (06) - POWER TRAIN

1

229849A1

AXLE

Front ZF No 4474 006 111, See Page(s) 6-22, 24, 26, 29, 31; If Used

1шт.

2

229848A1

AXLE

Rear ZF No 4474 005 184, See Page(s) 6-23, 33, 35, 38, 40, If Used

1шт.

3

328-1696

BOLT,Hex, 1" - 14 x 6", Gr 8

8шт.

4

328-1696

BOLT,Hex, 1" - 14 x 6", Gr 8

8шт.

5

496-21106

WASHER,1 1/16" x 2" x .209", HDN

32шт.

6

232-24416

NUT,1"-14, GC

16шт.

7

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

64шт.

8

429-1714

NUT,7/8"-14, G8, Hvy

64шт.
