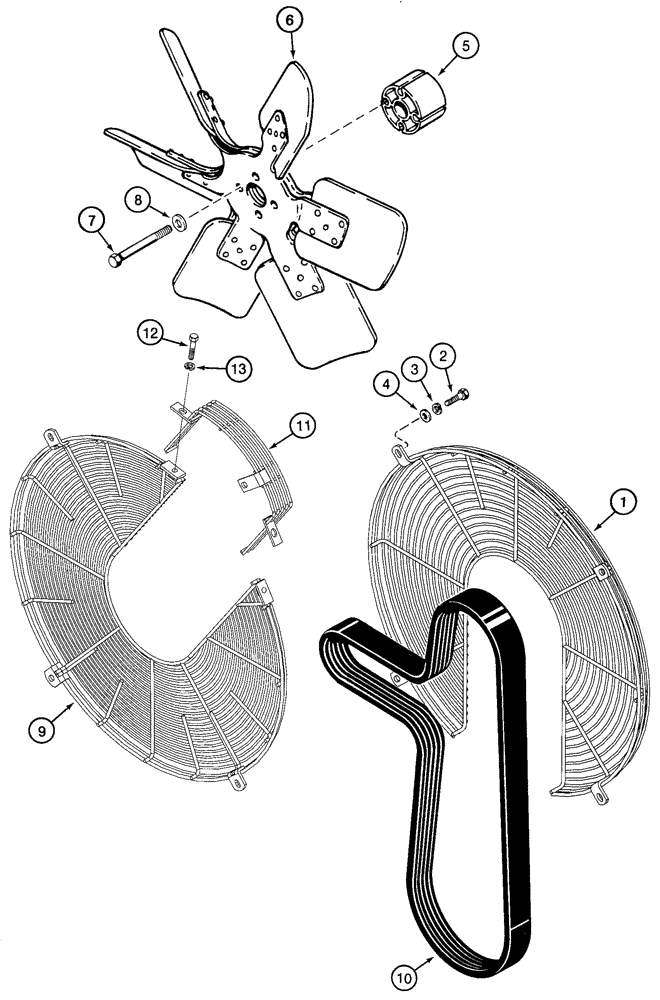

Запчасти Case 821C (02-07) - FAN FAN BELT (02) - ENGINE

All Models -JEE0126215

1шт.

1

198819A1

GUARD

Without Air Conditioning, North America Only

1шт.

2

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

3

892-11008

LOCK WASHER,8mm ID

4шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

5

A184548

SPACER,Fan, 89/90mm Thk

90 mm, North America Only

1шт.

5

A184524

SPACER

Europe Only

1шт.

6

101704A1

FAN,6 Blades, 653.2mm OD

1шт.

7

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

North America Only

4шт.

7

814-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 8.8

Europe Only

4шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

9

198820A1

GUARD

With Air Conditioning, North America Only

1шт.

10

J911567

BELT,27.92mm W x 1701.8mm L, 8 Ribs

North America Only

1шт.

10

J911580

V-BELT,27.92mm W x 1739.90mm L, 8 Ribs

Europe Only

1шт.

11

198821A2

HOLDER

Used With 198820A1, REF 9

1шт.

12

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

13

892-11008

LOCK WASHER,8mm ID

2шт.
