(06-19) - TRANSMISSION VALVE, REGULATOR AND OIL PUMP

Запчасти Case 821C (06-19) - TRANSMISSION VALVE, REGULATOR AND OIL PUMP (06) - POWER TRAIN

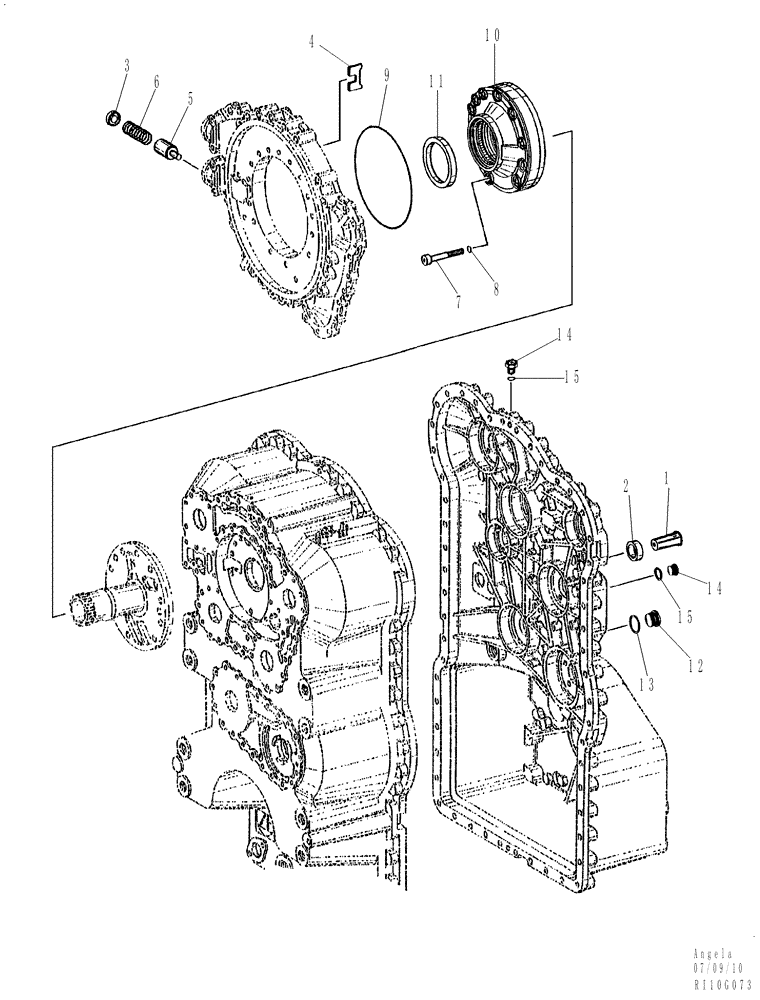

Схема запчастей Case 821C - (06-19) - TRANSMISSION VALVE, REGULATOR AND OIL PUMP (06) - POWER TRAIN
12
14
6
15
9
3
14
angela
7
8
ri10g073
2
10
11
15
1
07/09/10
4
13
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

12112

196174A1

GEARBOX

Consists Of 6-13 - 6-59, 7-3

1шт.

12112

196174A1R

REMAN-TRANSMISSION

821C CASE WHEEL LOADER (S/N JEE0155000 & BEFORE)

1шт.

12112

196174A1C

CORE-TRANSMISSION

Return Number

1шт.

1

331017A1

VALVE

1шт.

2

331018A1

BUSHING

1шт.

3

331019A1

CUP ASSY.

Pressure

1шт.

4

331020A1

WASHER

1шт.

5

331021A1

SPOOL

1шт.

6

331022A1

COMPRESSION SPRING

1шт.

7

331294A1

CAPSCREW,Flg, 5/16" - 18 x 2", Gr 8

Includes 8

10шт.

8

331295A1

O-RING

10шт.

9

331296A1

O-RING

1шт.

10

331645A1

PUMP, HYDRAULIC

Oil Pressure

1шт.

11

331301A1

SEAL

1шт.

12

331328A1

PLUG

Includes 17

1шт.

13

331329A1

O-RING,2mm Thk x 23mm ID

1шт.

14

330928A1

PLUG

Includes 19

2шт.

15

330929A1

O-RING,2mm Thk x 13mm ID

2шт.
