(06-18) - TRANSMISSION VALVE, CONTROL

Запчасти Case 821C (06-18) - TRANSMISSION VALVE, CONTROL (06) - POWER TRAIN

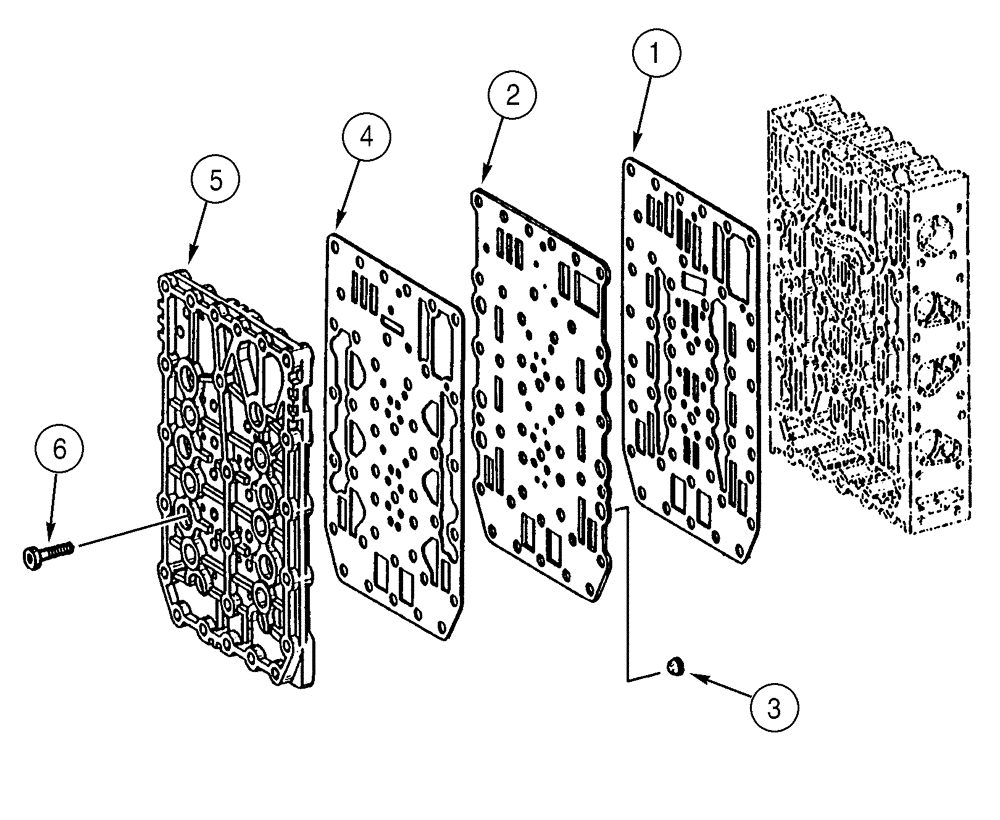

Схема запчастей Case 821C - (06-18) - TRANSMISSION VALVE, CONTROL (06) - POWER TRAIN
5
1
2
3
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

196174A1

GEARBOX

Consists Of 6-13 - 6-59, 7-3

1шт.

196174A1R

REMAN-TRANSMISSION

821C CASE WHEEL LOADER (S/N JEE0155000 & BEFORE)

1шт.

196174A1C

CORE-TRANSMISSION

Return Number

1шт.

331759A1

SHIFTING UNIT

Consists Of 1-6, Also Includes 6-49, 6-51

1шт.

1

331013A1

GASKET

1шт.

2

330965A1

LARGE PLATE

PLATE, LARGE

1шт.

3

330966A1

SCREEN

6шт.

4

330967A1

GASKET

1шт.

5

330968A1

LARGE PLATE

PLATE, LARGE

1шт.

6

330969A1

SCREW

18шт.
