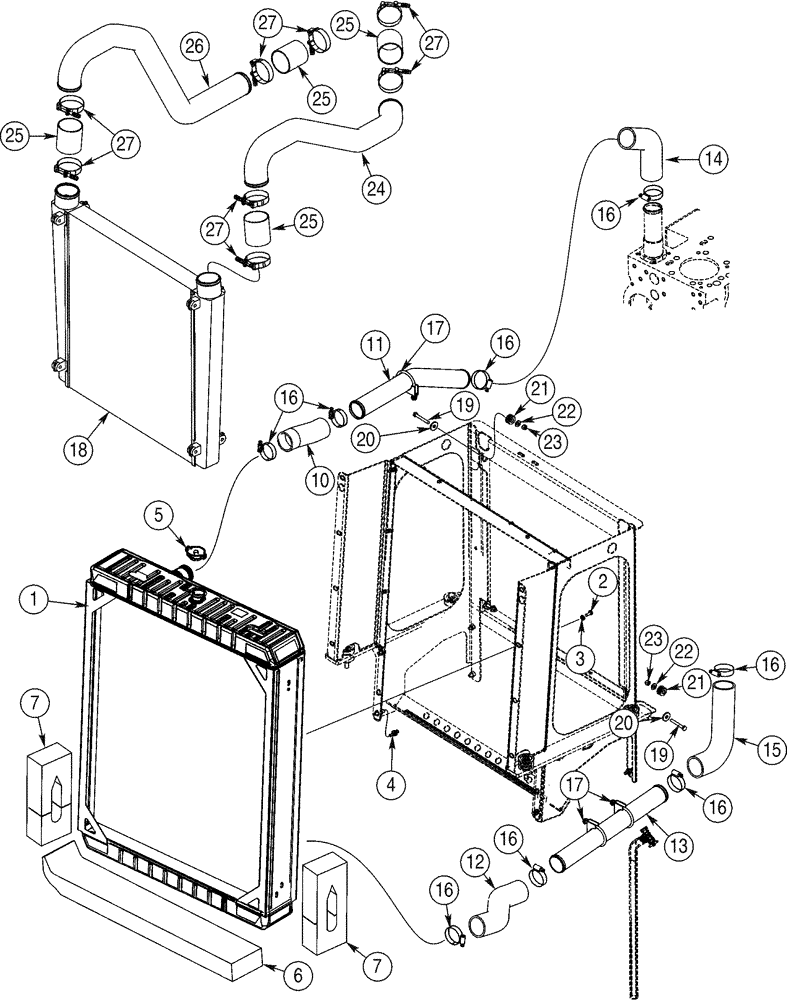

Запчасти Case 821C (02-06) - RADIATOR MOUNTING COOLER, CHARGE AIR (02) - ENGINE

Europe Only JEE0126216-

1шт.

1

395780A1

RADIATOR

1шт.

2

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

9шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

4

292523A1

SPECIAL BOLT

Ground

1шт.

5

A170241

RADIATOR CAP

15 psi

1шт.

6

444763A1

INSULATOR

Radiator, Bottom

1шт.

7

444764A1

INSULATOR

Radiator, Sides

2шт.

10

413058A1

HOSE, BULK,57.20 mm ID x 166.00 mm, SAE J20 R4 CLASS D1

HOSE, METERS Upper

1шт.

11

413062A1

TUBE

Coolant

1шт.

12

413059A1

HOSE, BULK,57.20 mm ID x 330.0 mm, SAE J20R4 CLASS D1

HOSE, METERS Lower

1шт.

13

419358A1

TUBE

Coolant, Bottom

1шт.

14

413060A1

HOSE

Engine, Upper

1шт.

15

413061A1

HOSE

Engine, Bottom

1шт.

16

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

8шт.

17

393632A1

CLAMP

Includes Hardware

3шт.

Europe Only JEE0126216-

1шт.

18

437249A1

HEAT EXCHANGER

Air To Charge Air

1шт.

19

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

4шт.

20

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

21

434177A1

ISOLATOR

4шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

24

413186A2

AIR INTAKE TUBE

Charge Air, Intake

1шт.

25

329736A1

HOSE

Air Intake

4шт.

26

413185A2

AIR INTAKE TUBE

Charge Air, Cooler To Turbocharger

1шт.

27

8500099

RETAINER COLLAR

8шт.
