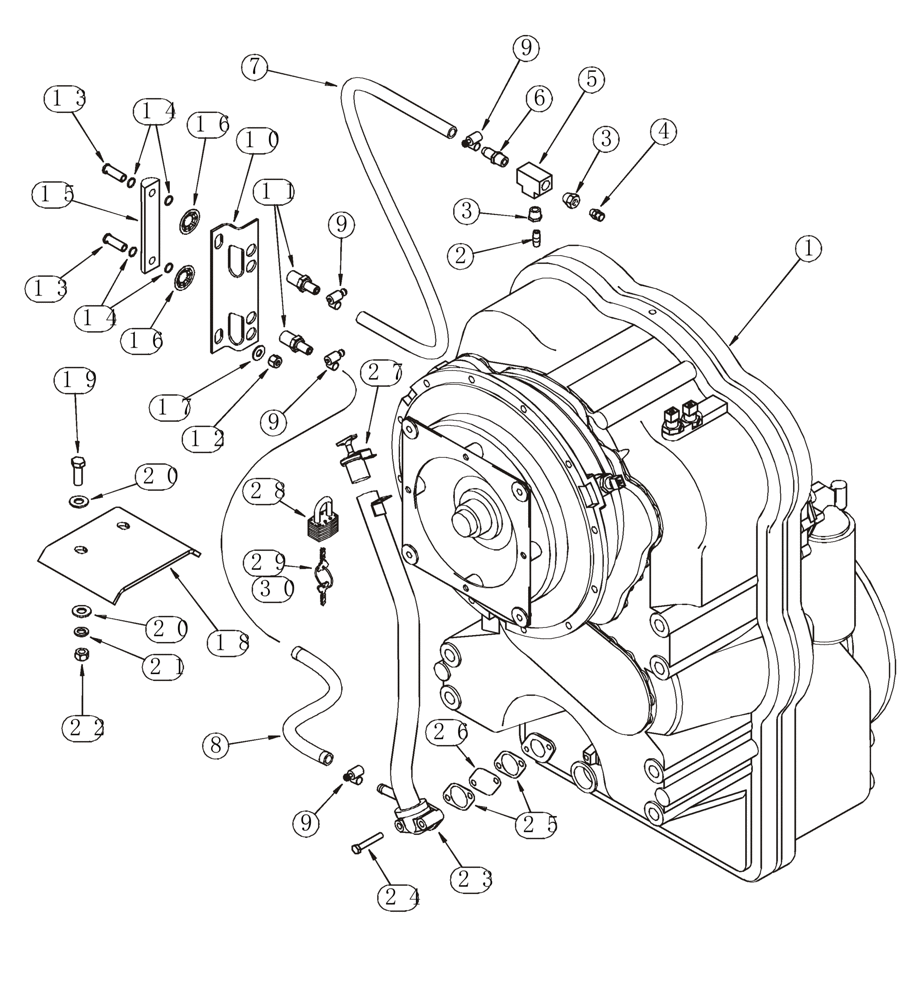

Запчасти Case 821C (06-04) - TRANSMISSION FILL TUBE GAUGE, SIGHT (06) - POWER TRAIN

1

196174A1

GEARBOX

ZF No 4657 054 015, See Page(s) 6-13 - 6-59, 7-3

1шт.

1

196174A1R

REMAN-TRANSMISSION

821C CASE WHEEL LOADER (S/N JEE0155000 & BEFORE)

1шт.

1

196174A1C

CORE-TRANSMISSION

Return Number

1шт.

2

221-103

FITTING

1/8 PT x 1

1шт.

3

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

2шт.

4

N14704

BREATHER

Sight Gauge, Included With Transmission

1шт.

5

221-423

TEE,3/8" NPT

1шт.

6

217-123

FITTING,1/2" Hose Barb x 3/8" Male NPTF

Brass

1шт.

7

303723A1

HOSE,12.70 mm ID x 1051.00 mm, SAE 100R6

Sight Gauge, Upper

1шт.

8

303724A1

HOSE,12.70 mm ID x 215.00 mm, SAE 100R6

Sight Gauge, Lower

1шт.

9

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

10

L125837

SUPPORT

1шт.

11

L125836

FITTING

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

L116247

GAUGE

Sight, Includes 13 - 15

1шт.

13

N13213

BOLT

No Longer Available, Order L116247

2шт.

829-1412

NUT,M12, Cl 10.9

2шт.

14

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

4шт.

15

NSS

NOT SOLD SEPARAT

Gauge, Order L116247

1шт.

16

131-141

PUSH-ON NUT,.74", Push-on

2шт.

17

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

18

303767A1

PROTECTION PLATE

Sight Gauge, North America Only, -JEE0126215

1шт.

19

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

North America Only, -JEE0126215

2шт.

20

895-15012

WASHER,M12 x 28 x 2.5

13,5 x 28 x 2,5 mm, North America Only, Replaces 895-25012, -JEE0126215

4шт.

21

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

North America Only, No longer used, -JEE0126215

2шт.

22

832-10412

NUT,M12 x 1.75, Cl 8

North America Only, Replaces 829-1412, -JEE0126215

2шт.

23

304496A2

PIPE ASSY.

Fill, Transmission

1шт.

24

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

Use with 242 Loctite

2шт.

25

S300507

GASKET

2шт.

26

E135229

FILTER SCREEN

1шт.

27

L126498

PLUG

No Longer Used, Order 349446A1

1шт.

27

349446A1

CAP ASSY.

Replaces L126498

1шт.

28

D93753

PADLOCK

Includes Keys, If Used

1шт.

29

D93751

SET OF 2 KEYS

For Yale Padlock Only, If Used

1шт.

30

R29555

KEY

For Master Padlock Only, If Used

1шт.
