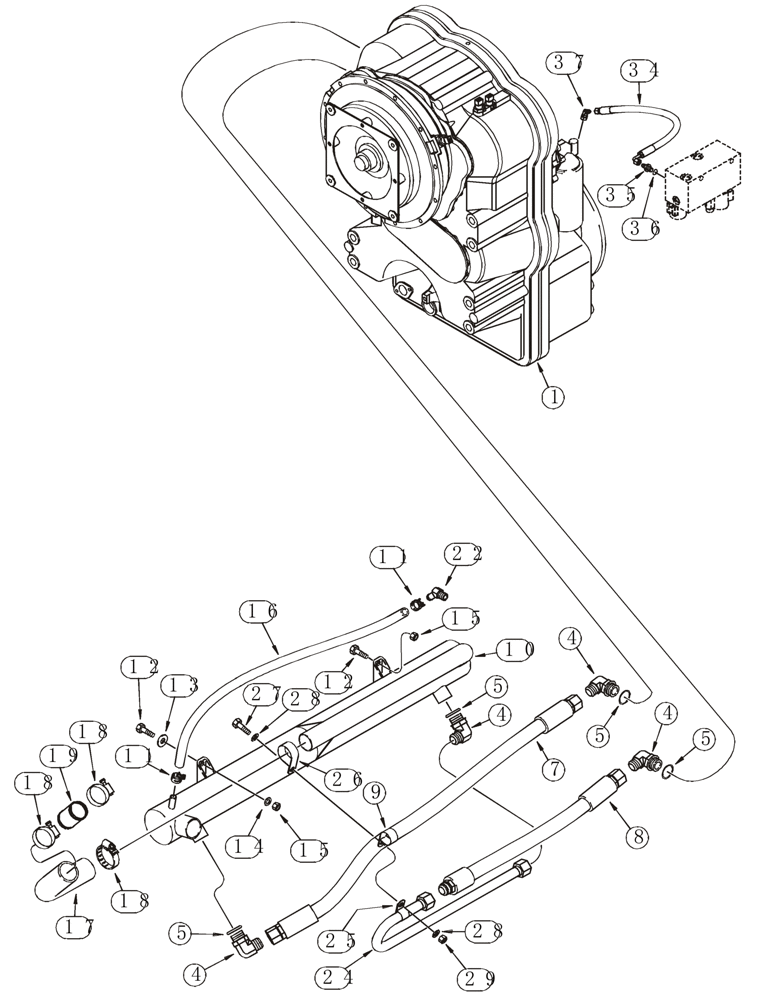

Запчасти Case 821C (06-01) - HYDRAULICS TRANSMISSION (06) - POWER TRAIN

*

All Models -JEE0126215

1шт.

1

196174A1

GEARBOX

ZF No 4657 054 015, See Page(s) 6-13 - 6-59, 7-3

1шт.

1

196174A1R

REMAN-TRANSMISSION

821C CASE WHEEL LOADER (S/N JEE0155000 & BEFORE)

1шт.

1

196174A1C

CORE-TRANSMISSION

Return Number

1шт.

4

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 5

4шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

258762A1

HOSE ASSY.

1181 mm (46-1/2 in)

1шт.

8

304824A1

HOSE ASSY.,25.4mm ID x 644mm L, SAE 100R1

638 mm (25-1/8 in)

1шт.

9

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

1шт.

10

L125987

COOLER,Transnission

1шт.

11

1954736C1

HOSE CLAMP,#24

2шт.

12

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

13

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

2шт.

14

R52337

WASHER

Belleville

2шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

16

31-1067

HOSE,0.63" ID x 36.00"

Cut From 97252CX

1шт.

17

L127974

RADIATOR HOSE,50.00 mm ID x 200.00 mm, SAE 20R4 Class C or D-1

To Water Pump

1шт.

18

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

3шт.

19

L117015

TUBE,50.8 mm OD x 77 mm L

1шт.

*

All Models -JEE0126215

1шт.

22

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

To Engine

1шт.

24

304538A1

TUBE

1шт.

25

515-25254

CLAMP,1", Insul, 1/2" Bolt

1шт.

26

515-25508

CLAMP,2", Insul, 1/2" Bolt

1шт.

27

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

Replaces 627-12030

1шт.

28

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

29

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

34

300941A1

HOSE ASSY.

Parking Brake

1шт.

35

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 36

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

218-5170

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Female JIC

1шт.
