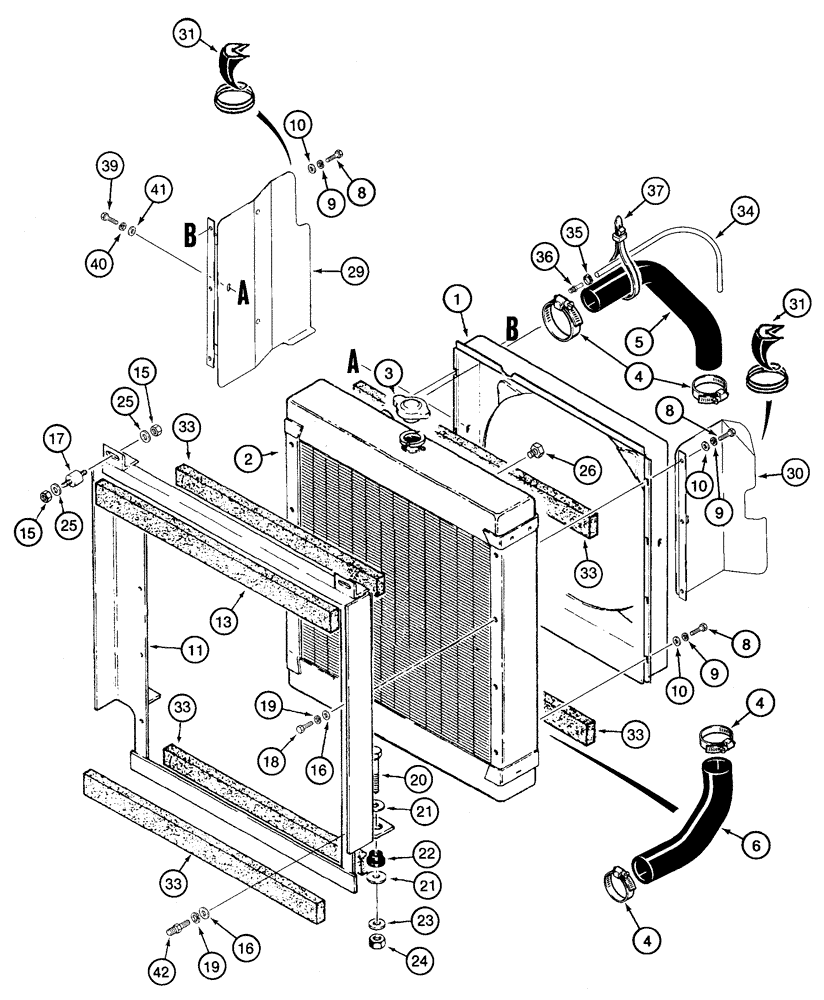

Запчасти Case 821C (02-05) - RADIATOR MOUNTING (02) - ENGINE

Europe Only -JEE0126215

1шт.

1

176019A2

BAFFLE ASSY.

Replaces 176019A1

1шт.

2

300305A1

RADIATOR

1шт.

3

A170241

RADIATOR CAP

15 psi

1шт.

4

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

4шт.

5

178520A1

RADIATOR HOSE,56.80 mm ID x 433.00 mm, SAE R4 CLASS C OR D-1

Upper

1шт.

6

178524A1

RADIATOR HOSE,56.80 mm ID x 259.00 mm, SAE 20R4 Class C OR D1

Lower

1шт.

8

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

9

892-11008

LOCK WASHER,8mm ID

8шт.

10

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32"), Replaces 895-15008

8шт.

11

136386A1

SUPPORT

1шт.

13

L128306

SEALING STRIP,50mm W x 765mm L x 38mm Thk

765 mm (30-1/8 in)

1шт.

15

131-206

NUT,3/8"-16

4шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

17

L127163

BOLT

2шт.

18

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

7шт.

19

892-11008

LOCK WASHER,8mm ID

8шт.

Europe Only -JEE0126215

1шт.

20

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

21

495-81239

WASHER,17/32" x 2 1/4" x .180"

4шт.

22

L46821

SHOCK ABSORBER

2шт.

23

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

24

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

25

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

26

217-87

PLUG,Hex Hd, 3/8"-18 NPTF, Brass

If Used

1шт.

29

185676A1

PROTECTOR

Fan, Left Hand

1шт.

30

178240A1

GUARD ASSY.

Fan, Right Hand

1шт.

31

123898A1

LINING

978 mm (38-1/2 in)

2шт.

33

120112A1

INSULATOR,30mm W x 725mm L x 10mm Thk

5шт.

34

234333A1

HOSE,9.5mm ID x 625mm L, SAE 20R3

Radiator Bypass

1шт.

35

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

36

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

37

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

39

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

40

892-11008

LOCK WASHER,8mm ID

2шт.

41

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32"), Replaces 895-15008

2шт.

42

292523A1

SPECIAL BOLT

Ground

1шт.
