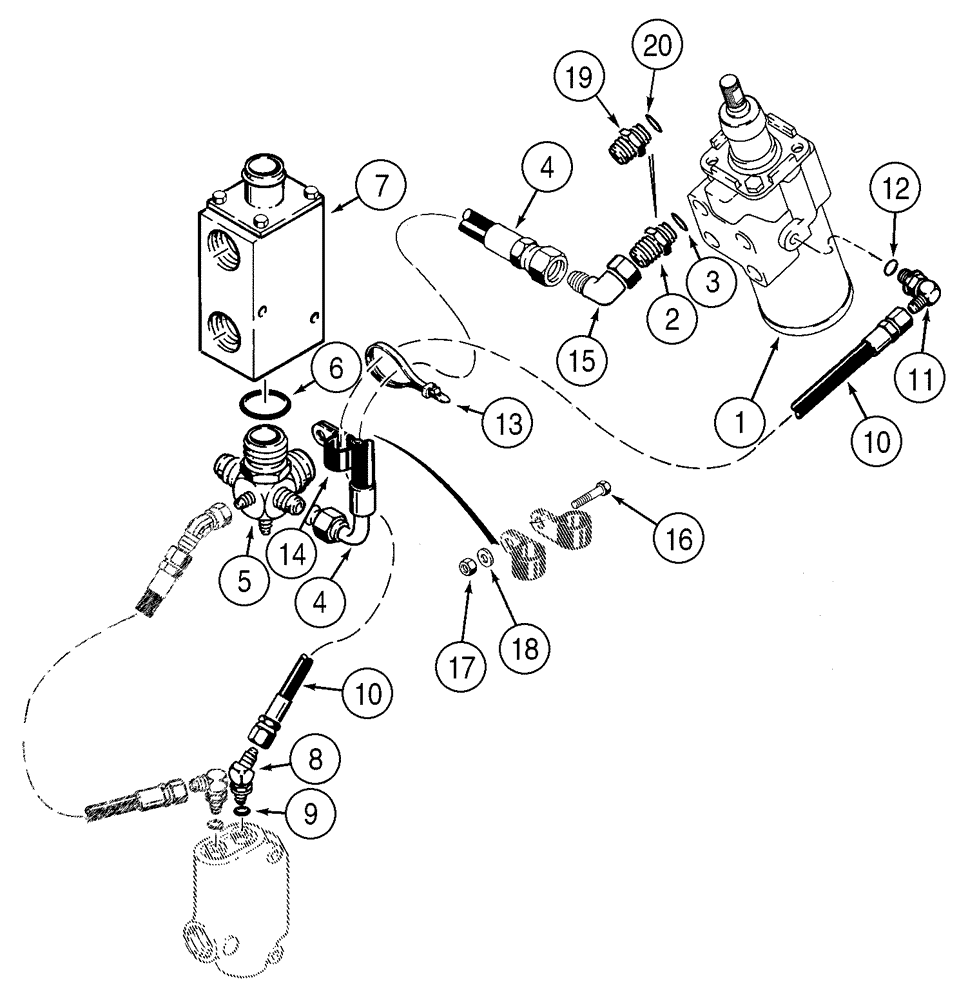

Запчасти Case 821C (05-05) - HYDRAULICS STEERING (05) - STEERING

Return Line

1шт.

1

284103A2

VALVE, CONTROL

Steering, See Page(s) 5-9

1шт.

2

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. 3, No Longer Used, Order 451220A1, Ref 19

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

304153A1

HOSE ASSY.

1072 mm (42-1/4 in)

1шт.

5

108748A1

FITTING

Includes 6

1шт.

6

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

7

L110287

VALVE,1-7/8" - 12

Hydraulic Oil Cooler, See Page(s) 8-55

1шт.

8

218-5133

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj, Includes 9

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

111227A1

HOSE ASSY.

1520 mm (59-7/8 in)

1шт.

11

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj Or, Includes 12

1шт.

12

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

14

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

15

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

No Longer Used

1шт.

16

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

17

231-1446

NUT,3/8" - 16, Gr 5

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

19

451220A1

CHECK VALVE

Includes 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
