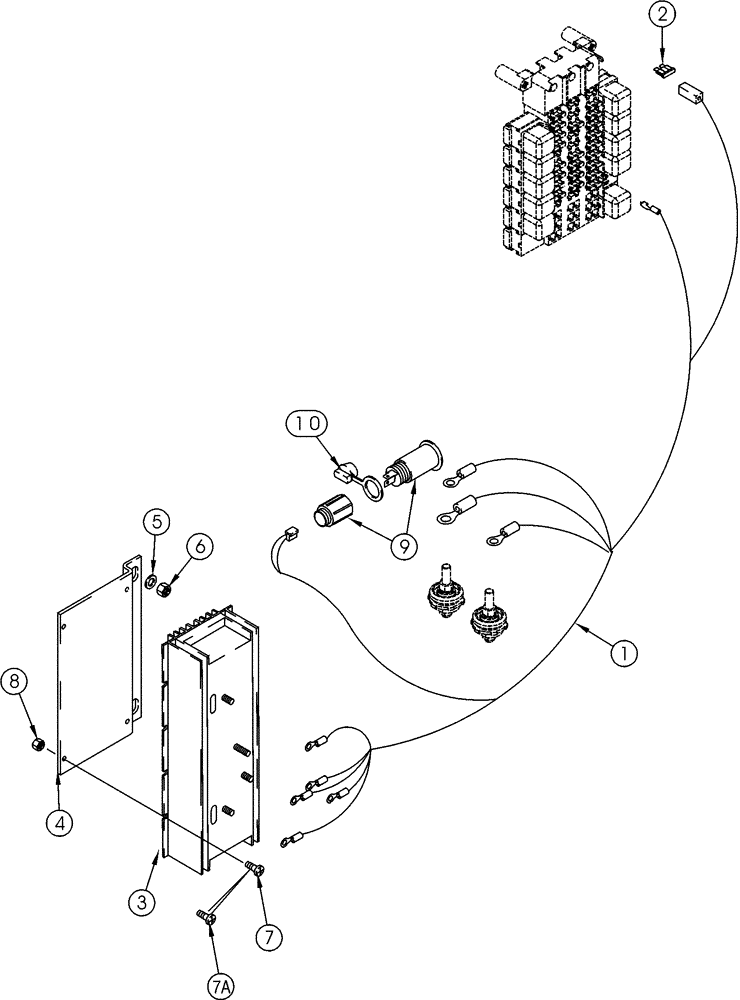

Запчасти Case 821C (04-46) - CONVERTER, POWER OUTLET MOUNTING (04) - ELECTRICAL SYSTEMS

Power Outlet

1шт.

1

318150A2

WIRE HARNESS

Converter

1шт.

2

A149799

FUSE

7,5 amp

1шт.

3

318356A1

TRANSFORMER

24 - 12 V

1шт.

4

363649A1

SUPPORT

Converter, Replaces 316653A1

1шт.

5

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

7

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

No Longer Used, Order 760-14395

4шт.

7a

760-14395

SELF-TAP SCREW,Pan Hd, M4.2 x 9.5

Replaces 840-1412

4шт.

8

832-10404

NUT,M4 x 0.7, Cl 8.8

No Longer Used

4шт.

9

283779A1

POWER SOCKET,12V

1шт.

10

283781A1

CAP,Polyester Elastomer

Plug

1шт.
