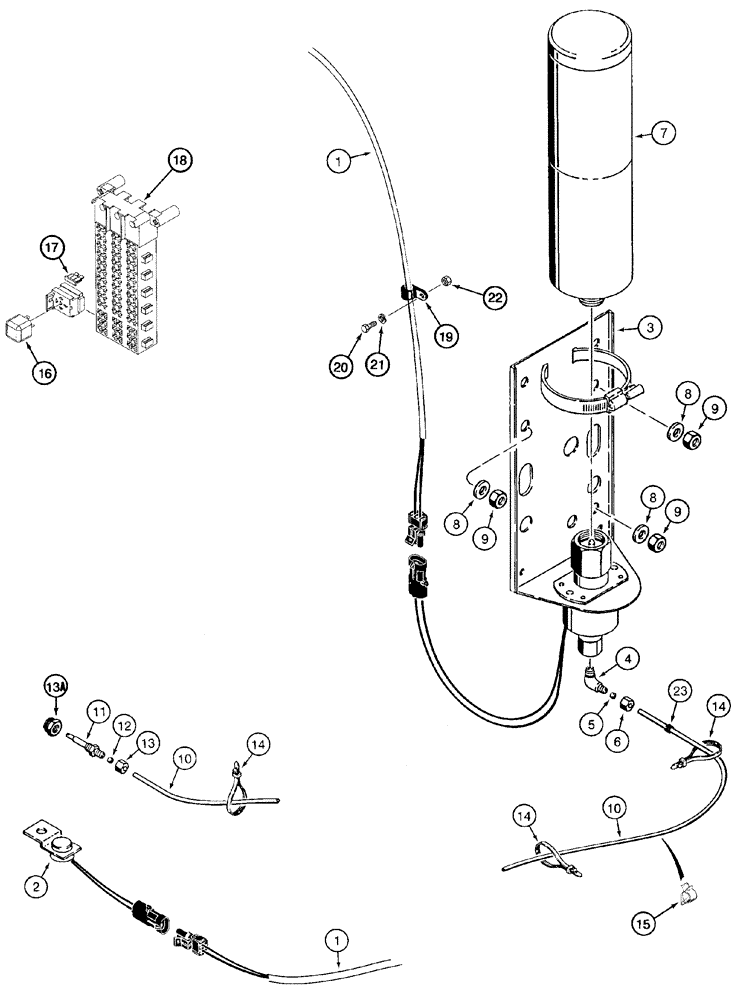

Запчасти Case 821C (04-43) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

North America Only

1шт.

1

296748A3

HARNESS

Engine and Transmission, No Longer Available, Order 296748A5

1шт.

1

296748A5

HARNESS

Engine and Transmission, Replaces 296748A3, 296748A4

1шт.

2

L126191

THERMOSTATIC SWITCH

Circuit Breaking, Use Existing Hardware

1шт.

L126198

VALVE

Consists Of 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Solenoid

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Consists of 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

7

A171940

CYLINDER

Starting Fluid

1шт.

8

S95569

WASHER

Hardened

3шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

Replaces 231-1446

3шт.

10

L126227

TUBE,0.125" OD x 84" L

2134 mm (84 in), Cut From 1954063CX

1шт.

A172900

NOZZLE CAP

Starting Fluid, Consists Of 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

Body

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

13a

217-1034

REDUCER,1/4" - 18 Male NPTF x 1/8" - 27 Female NPTF

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

15

L100659

CLIP

Tube

1шт.

16

326845A1

RELAY,24V

24V

1шт.

17

A149800

FUSE,10 Amp

10 amp

1шт.

18

242101A5

HARNESS

Cab Main, Replaces 242101A2, 242101A3, 242101A4, -JEE0125745

1шт.

18

429188A2

HARNESS

Cab Main, Replaces 429188A1, JEE0125746-

1шт.

19

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

(7.9 mm)

1шт.

20

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

1шт.

21

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

(3/16")

1шт.

22

225-14110

NUT,#10-24

1шт.

23

L77834

GROMMET

1шт.
