(02-04) - RADIATOR MOUNTING AND CONNECTIONS

Запчасти Case 821C (02-04) - RADIATOR MOUNTING AND CONNECTIONS (02) - ENGINE

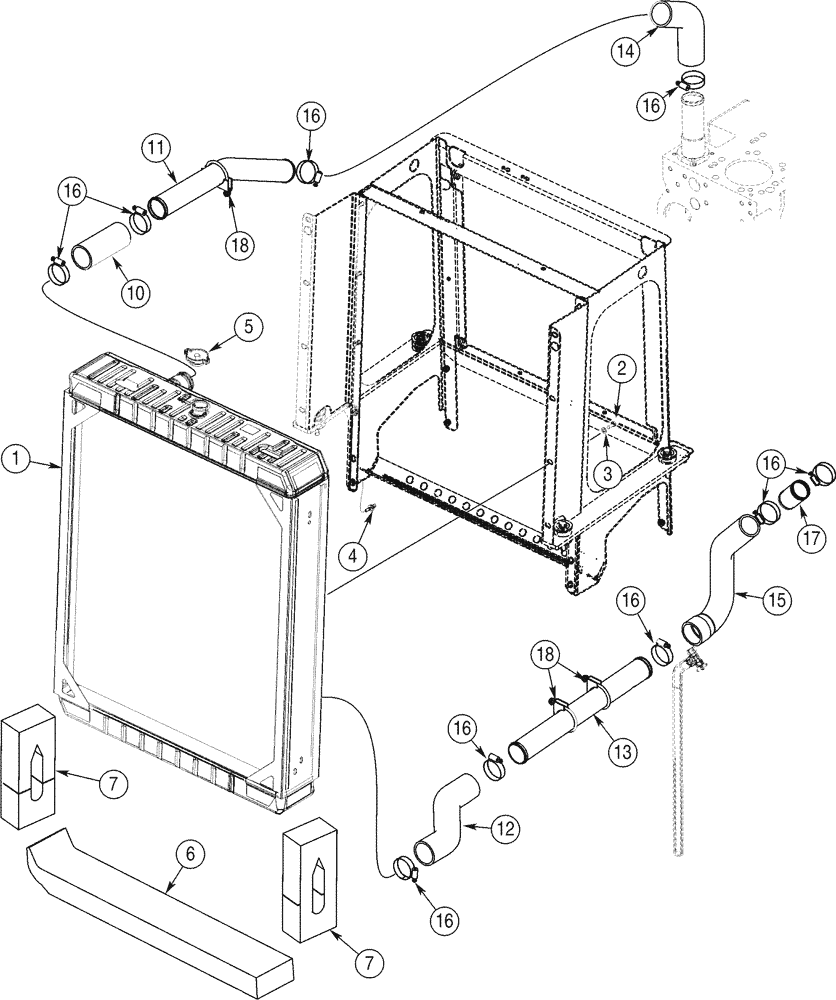

Схема запчастей Case 821C - (02-04) - RADIATOR MOUNTING AND CONNECTIONS (02) - ENGINE
6
11
16
10
4
15
18
16
7
16
2
16
14
18
1
3
16
16
17
5
13
7
16
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

North American Only JEE0126216-

1шт.

1

395780A1

RADIATOR

1шт.

2

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

9шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

4

292523A1

SPECIAL BOLT

Ground

1шт.

5

A170241

RADIATOR CAP

15 psi

1шт.

6

444763A1

INSULATOR

Radiator, Bottom

1шт.

7

444764A1

INSULATOR

Radiator, Sides

2шт.

10

436504A1

RADIATOR HOSE,57.20 mm ID x 156.00, SAE 20R4 CLASS D1

Upper

1шт.

11

413062A1

TUBE

Coolant

1шт.

12

413059A1

HOSE, BULK,57.20 mm ID x 330.0 mm, SAE J20R4 CLASS D1

HOSE, METERS Lower

1шт.

13

419358A1

TUBE

Coolant, Bottom

1шт.

14

413060A1

HOSE

Engine, Upper

1шт.

15

436505A1

HOSE,50.80 mm ID, 57.20 mm ID x 320.00 mm, SAE 20R4 Class D1

Engine, Bottom

1шт.

16

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

9шт.

17

L117015

TUBE,50.8 mm OD x 77 mm L

1шт.

18

393632A1

CLAMP

Includes Hardware

3шт.
