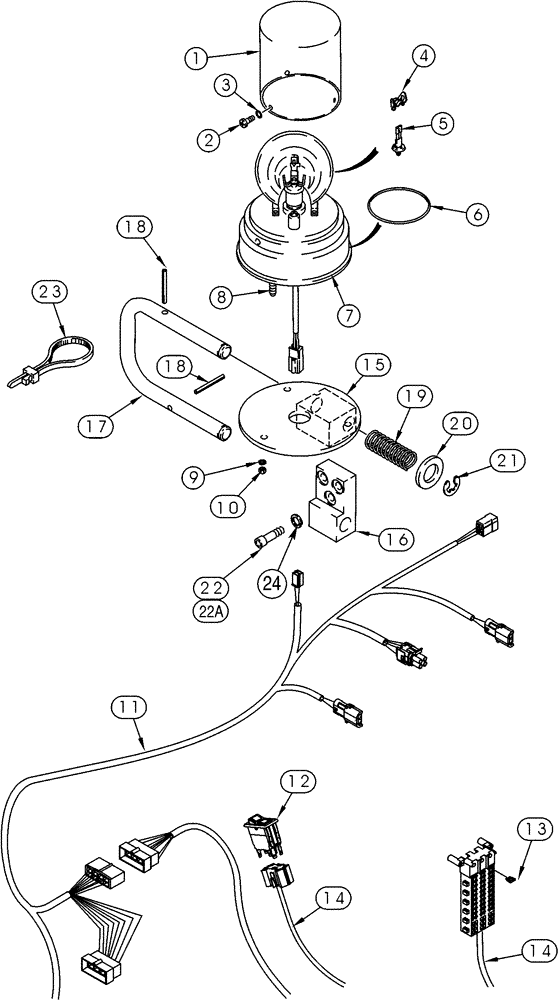

Запчасти Case 821C (04-39) - BEACON ASSY, ROTATING MOUNTING (04) - ELECTRICAL SYSTEMS

Europe Only

1шт.

A187528

LIGHT ASSY.

Rotating Beacon, Consists Of 1 - 8, No Longer Used, Order 367751A1

1шт.

367751A1

BEACON ROTATING

BEACON , Rotating Beacon, Consists Of 1 - 8, Replaces A187528

1шт.

1

A187542

LENS

Amber, If Used

1шт.

1

127158A1

LENS

Blue, If Used

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

Lens mounting

3шт.

3

238-5005

O-RING,0.094" ID x 0.062" Width

3шт.

4

NSS

NOT SOLD SEPARAT

Clip

1шт.

5

P40533

LAMP

Halogen

1шт.

6

A187575

O-RING

Drive Motor

1шт.

7

NSS

NOT SOLD SEPARAT

Base, Includes Drive Motor

1шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

9

892-11006

LOCK WASHER,M6

3шт.

10

825-1406

NUT,M6, Cl 8

3шт.

11

238764A2

WIRE HARNESS

Cab Roof, Replaces 238764A1

1шт.

12

234194A1

SWITCH

Rotating Beacon

1шт.

13

A149799

FUSE

7,5 amp

1шт.

14

242101A5

HARNESS

Cab Main, Replaces, 242101A2, 242101A3, 242101a4, -JEE0125745

1шт.

14

429188A2

HARNESS

Cab Main, Replaces 429188A1, JEE0125746-

1шт.

15

313215A1

SUPPORT

Beacon Mounting

1шт.

16

313213A2

SUPPORT

Beacon Mounting, At Cab, Replaces 313213A1

1шт.

17

313216A2

ARM

Beacon Mounting, Replaces 313216A1

1шт.

18

38-31620

PIN,6.35mm OD x 31.75mm L

Replaces 138-2053

2шт.

19

1986722C1

SPRING

2-1/4, Return, If Used, Black

2шт.

19

373596A1

SPRING

Return, If Used

2шт.

20

495-11081

WASHER,3/4", SAE

2шт.

21

100-3375

SNAP RING,#75, .574" Dia, E-Type

2шт.

22

863-8016

HEX SOC SCREW,M8 x 16mm, Cl 12.9

No Longer Used, Order 864-8020

3шт.

22a

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

Replaces 863-8016

3шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in, Replaces L11541

1шт.

24

892-11008

LOCK WASHER,8mm ID

3шт.
