Запчасти Case 821C (02-03) - RADIATOR MOUNTING (02) - ENGINE

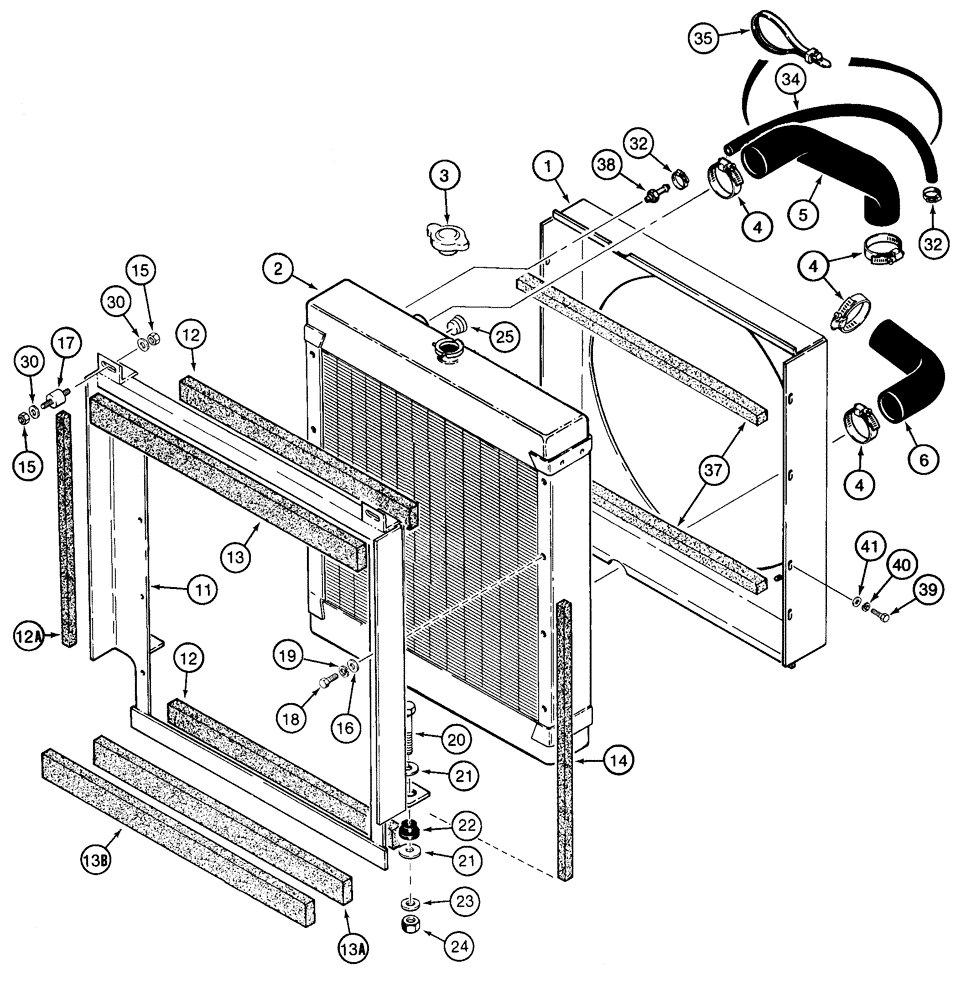

Схема запчастей Case 821C - (02-03) - RADIATOR MOUNTING (02) - ENGINE
15
4
18
11
12
5
37
39
38
1
35
40
13b
32
2
14
34
30
21
41
23
4
17
19
22
4
24
21
15
12a
16
25
6
13a
30
20
13
32
3
12

Артикул

Название

Примечание

Количество

North America Only -JEE0126215

1шт.

1

198822A1

SHROUD

1шт.

2

253148A1

RADIATOR

Armor Core

1шт.

3

A170241

RADIATOR CAP

15 psi

1шт.

4

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

4шт.

5

L125159

RADIATOR HOSE,56.80 mm ID x 380.00 mm, SAE 20R4 Class SC or D-1

Upper

1шт.

6

L127973

RADIATOR HOSE,56.80 mm ID x 180.00 mm, SAE 20R4 Class C or D-1

Lower

1шт.

11

111187A1

SUPPORT

1шт.

12

L127665

SEAL

676 mm (26-5/8 in), Upper and Lower Support

2шт.

12a

113246A1

SEAL

560 mm (22 in), Side Support, Left Hand

1шт.

13

L128306

SEALING STRIP,50mm W x 765mm L x 38mm Thk

765 mm (30-1/8 in), Upper Support

1шт.

13a

L128353

FOAM INSULATION,61mm W x 765mm L x 10mm Thk

765 mm (30-1/8 in), Lower Support

1шт.

13b

L127664

SEAL

800 mm (31-1/2 in), Lower Support

1шт.

14

L127666

SEALING STRIP,25mm W x 787mm L x 25mm Thk

787 mm (31 in), Side Support, Right Hand

1шт.

15

131-206

NUT,3/8"-16

4шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

17

L127163

BOLT

Radiator Support Mounting

2шт.

North America Only -JEE0126215

1шт.

18

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

19

892-11008

LOCK WASHER,8mm ID

8шт.

20

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

21

495-81239

WASHER,17/32" x 2 1/4" x .180"

4шт.

22

L46821

SHOCK ABSORBER

2шт.

23

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

24

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

25

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

If used

1шт.

30

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

32

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

34

A161557

HOSE,9.60 mm ID x 558.80 mm, SAE 20R3

Cut from A154065X

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in, Retaining

2шт.

37

120112A1

INSULATOR,30mm W x 725mm L x 10mm Thk

2шт.

38

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

39

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

Shroud to Radiator

8шт.

40

892-11008

LOCK WASHER,8mm ID

8шт.

41

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32"), Replaces 895-15008

8шт.

Выбрано товаров: 35
