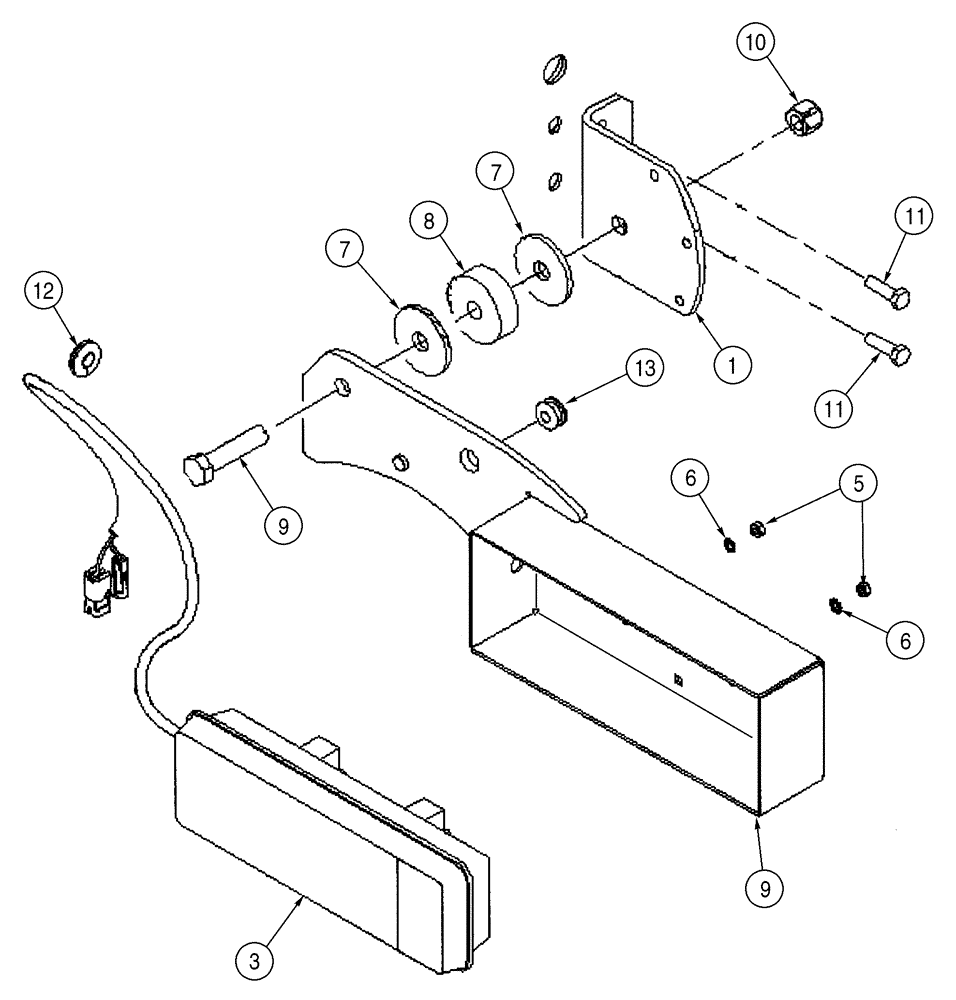

Запчасти Case 821C (04-32) - MOUNTING LAMPS, REAR COMBINATION (04) - ELECTRICAL SYSTEMS

Europe Only JEE0126216-

1шт.

1

E137360

SUPPORT

Combination Lamp, Right Hand, Not Illustrated

1шт.

1

E137357

SUPPORT

Combination Lamp, Left Hand

1шт.

2

436193A1

SUPPORT ASSY.

Combination Lamp, Right Hand, Not Illustrated

1шт.

2

436194A1

SUPPORT ASSY.

Combination Lamp, Left Hand

1шт.

3

E133218

LAMP, TAIL

LIGHT, TAIL , Combination, Right Hand, Left Hand, See Page(s) 4-85

2шт.

4

E132941

HARNESS

Combination Lamp

2шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

6

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

4шт.

7

495-81238

WASHER,13/16" x 3" x .238", HDN

4шт.

8

120841A1

WASHER

Rubber

2шт.

9

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

2шт.

10

231-14412

LOCK NUT,3/4"-10, GB

2шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

12

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.

13

22-422

GROMMET

2шт.
