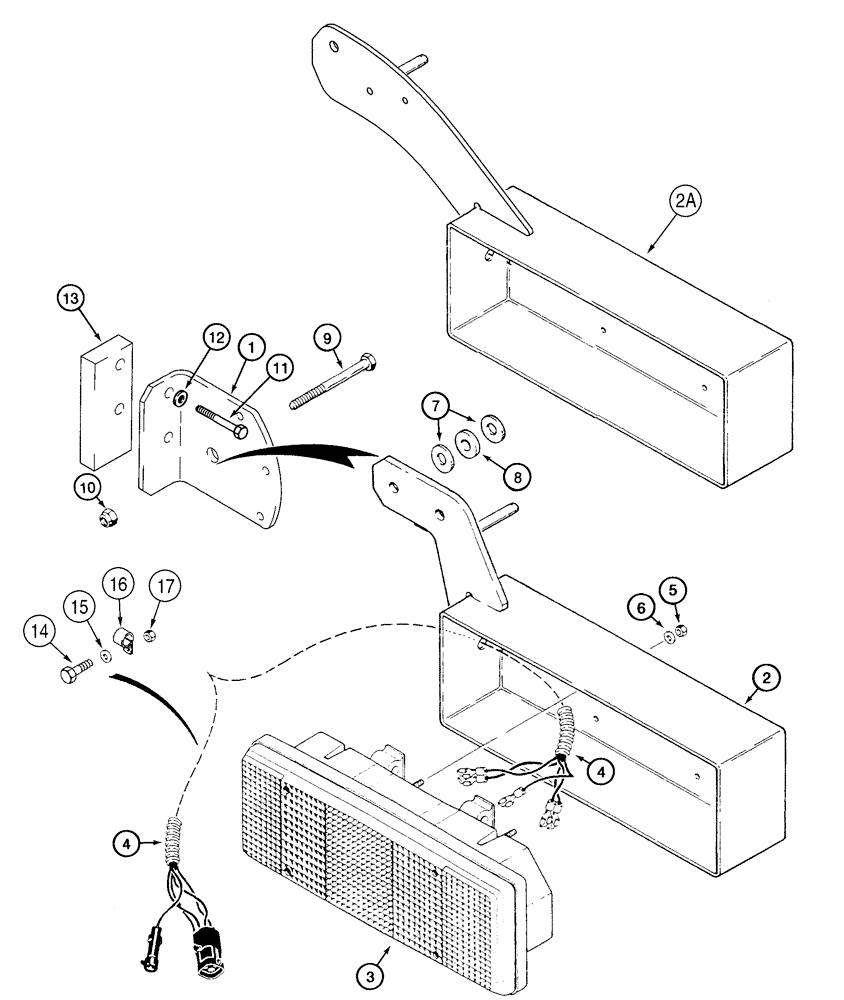

Запчасти Case 821C (04-31) - MOUNTING LAMPS, REAR COMBINATION (04) - ELECTRICAL SYSTEMS

Europe Only -JEE0126215

1шт.

1

E137360

SUPPORT

Combination Lamp, Right Hand

1шт.

1

E137357

SUPPORT

Combination Lamp, Left Hand, Not Illustrated

1шт.

2

E137359

SUPPORT

Combination Lamp, Right Hand, No Longer Used, Order 339845A1

1шт.

2a

339845A1

SUPPORT

Combination Lamp, Right Hand, Replaces E137359

1шт.

2

E137361

SUPPORT

Combination Lamp, Left Hand, Not Illustrated, No Longer Used, Order 339846A1

1шт.

2a

339846A1

SUPPORT

Combination Lamp, Left Hand, Not Illustrated, Replaces E137361

1шт.

Europe Only -JEE0126215

1шт.

3

E133218

LAMP, TAIL

LIGHT, TAIL , Combination, Right Hand, Left Hand, See Page(s) 4-85

1-2шт.

3

E133219

LAMP, TAIL

LIGHT, TAIL , Combination, Left Hand, See Page(s) 4-85, No Longer Used, Order E133218, Not Illustrated

1шт.

4

E132941

HARNESS

Combination Lamp

2шт.

5

825-1408

NUT,M8, Cl 8

4шт.

6

892-11008

LOCK WASHER,8mm ID

4шт.

7

495-81238

WASHER,13/16" x 3" x .238", HDN

4шт.

8

120841A1

WASHER

Rubber

2шт.

9

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

2шт.

10

231-14412

LOCK NUT,3/4"-10, GB

2шт.

11

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Replaces 814-12055

4шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Replaces 892-11012

4шт.

13

129593A1

SPACER

If Used

2шт.

14

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
